Product Description
The S POWER Portable Line Boring machine is built for on-site internal boring and restoration of worn or damaged holes, with welding build-up capability and re-machining for high-accuracy results.
It is ideal for heavy equipment maintenance, excavators, hydraulic attachments, and industrial applications where repairs must be done in the field. The system supports complete operation (boring + welding) with remote control for safe and convenient use.
Supplied as a ready-to-work kit, including modular tooling and alignment accessories, to start working immediately.
Technical Specs
General
- Boring Range: 40 mm to 300 mm
- Machine Type: Portable Line Boring
- Brand: S POWER

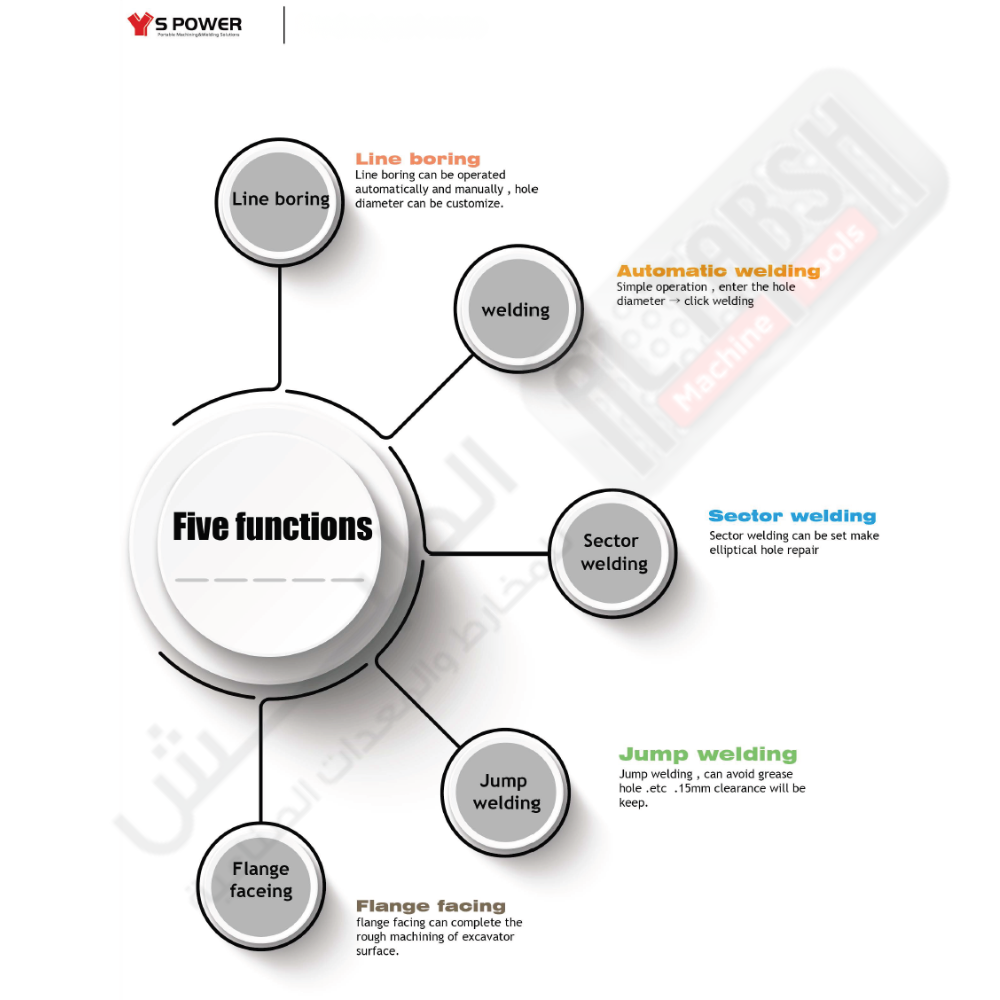

Functions
- Internal Boring (Line Boring)
- Automatic Welding
- Sector Welding
- Jump Welding
- Flange Facing
Electrical
- Voltage: 220V – Single Phase
- Plug Type: Standard Plug

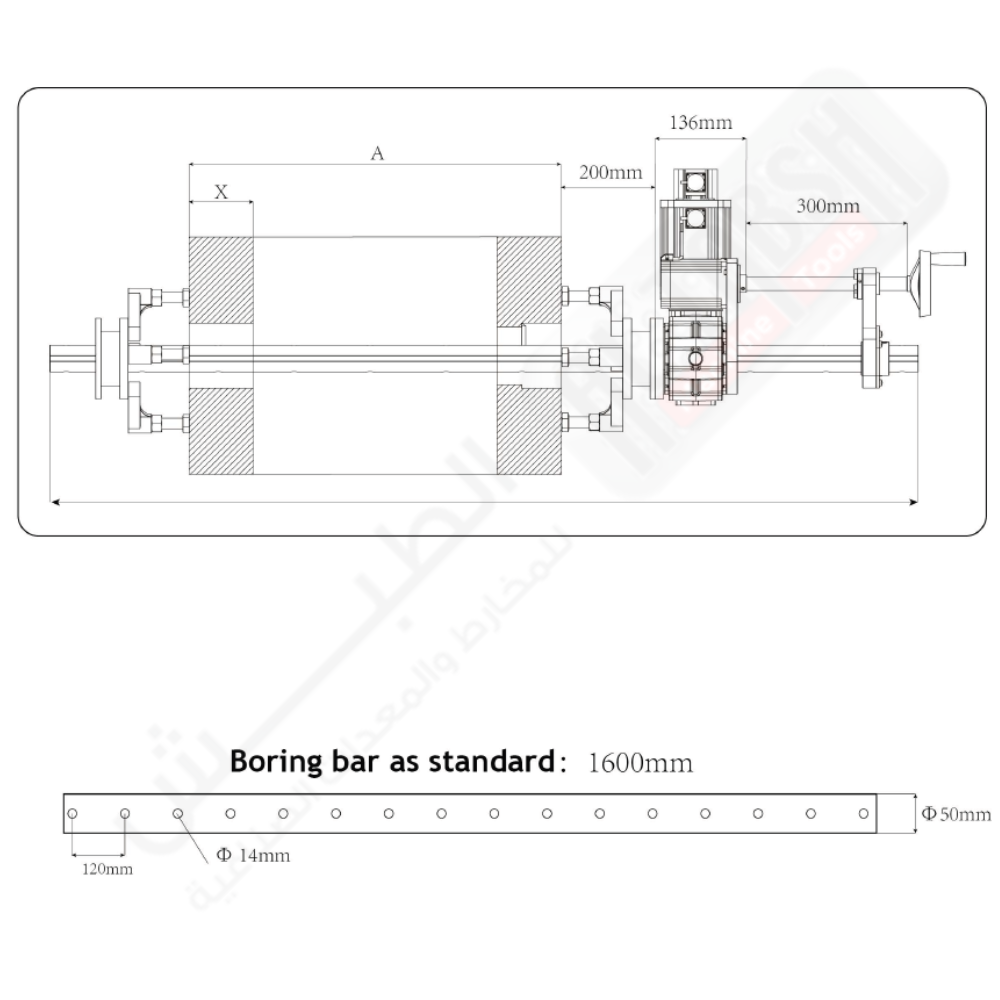

Boring Bar
- Boring Bar Lengths: 1600 mm + 1200 mm
- Boring Bar Diameter: 50 mm
- Hole Diameter: 14 mm
- Hole Spacing: 120 mm

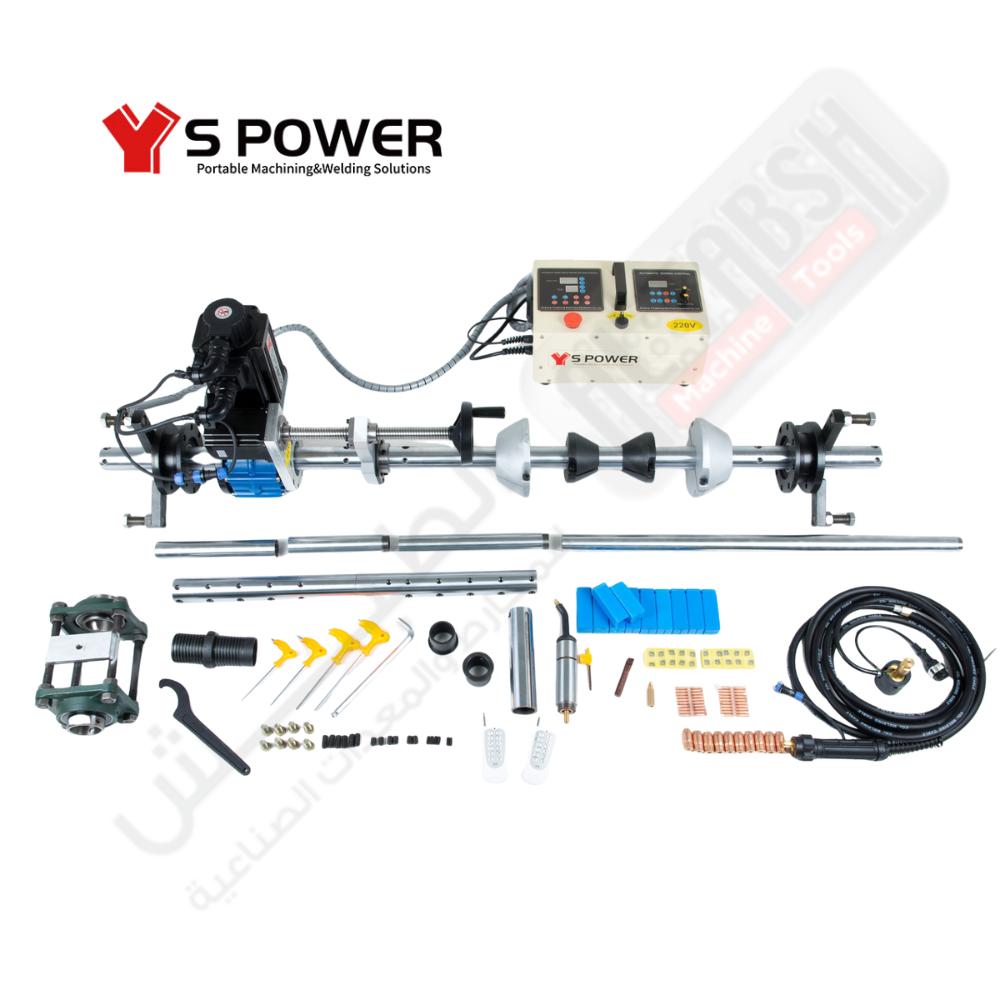

Included Accessories

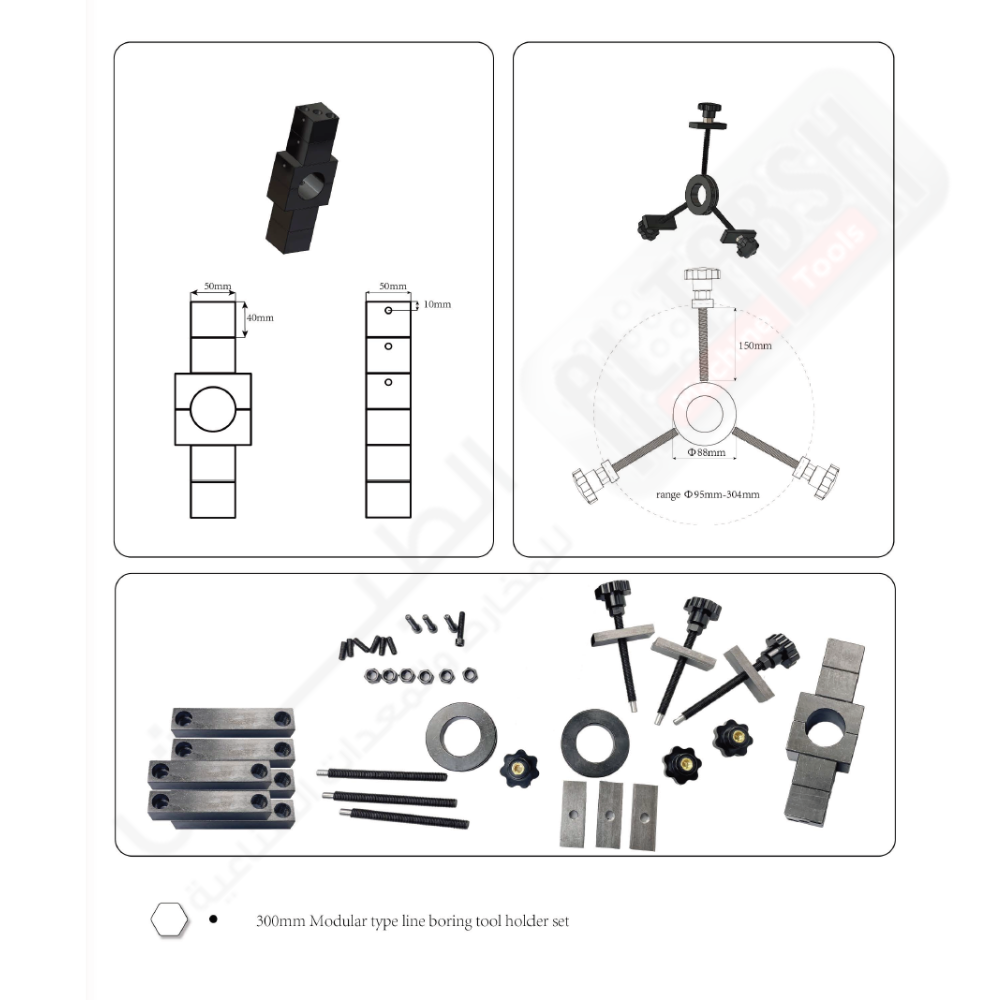

- Modular Line Boring Tool Holder Set: 300 mm
- Centering / Alignment Fixture Range: Ø95 mm – Ø304 mm
- Main Control Unit (Boring + Welding)
- Remote Controller
- Welding Head and Welding Wire
- Boring Tools (holders and inserts)
- Basic Hand Tools
