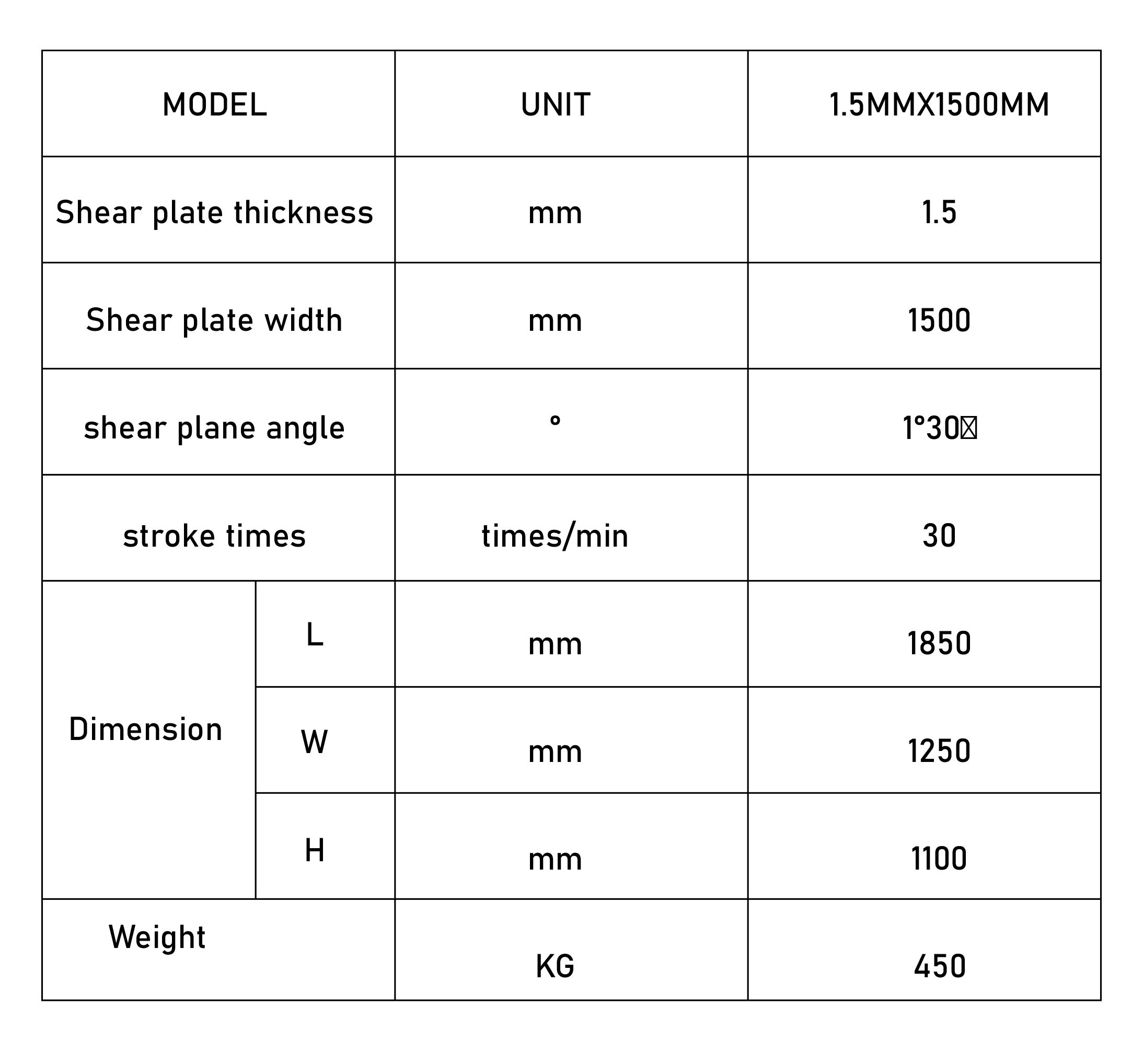

Technical specifications
Maximum sheet thickness: 1.5 mm.
Maximum sheet width: 1500 mm.
Shear rake angle: about 1°30′.
Strokes per minute: 30 strokes/min.
Dimensions: length 1850 mm, width 1250 mm, height 1100 mm.
Weight: 450 kg.
Features and applications

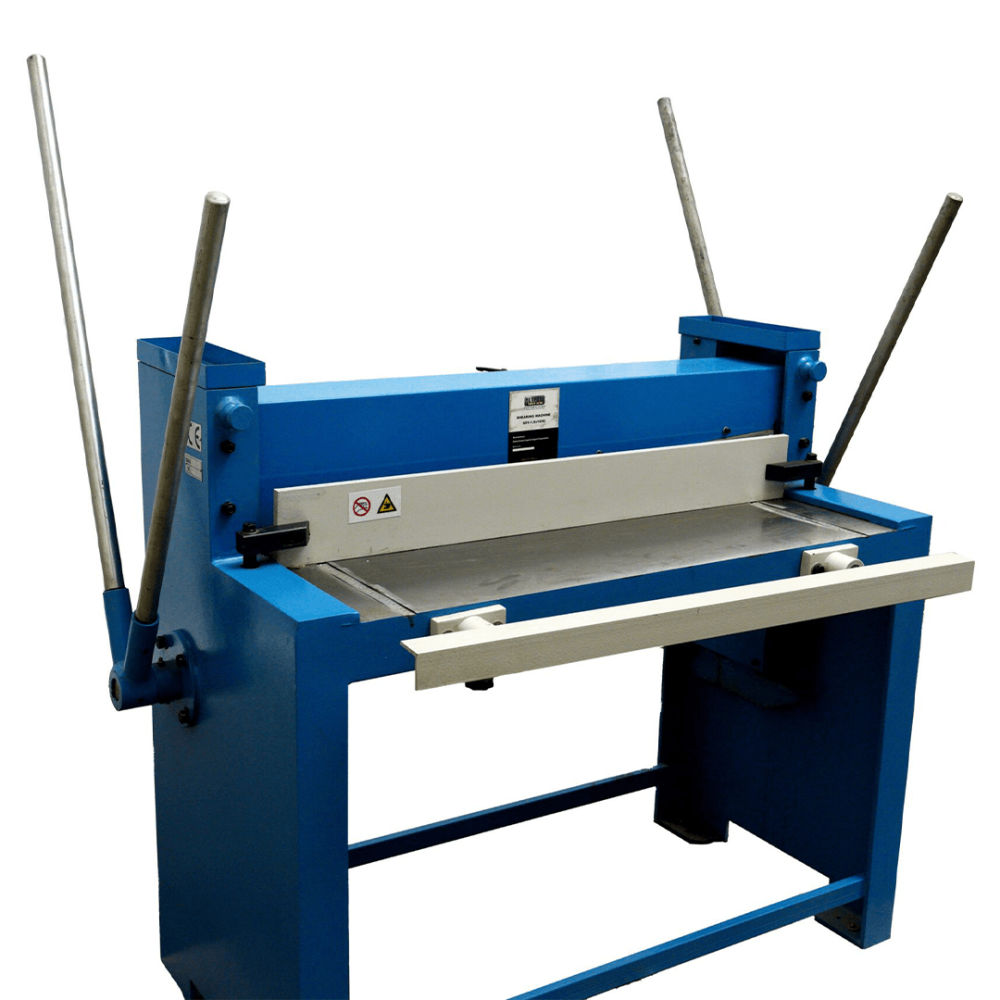

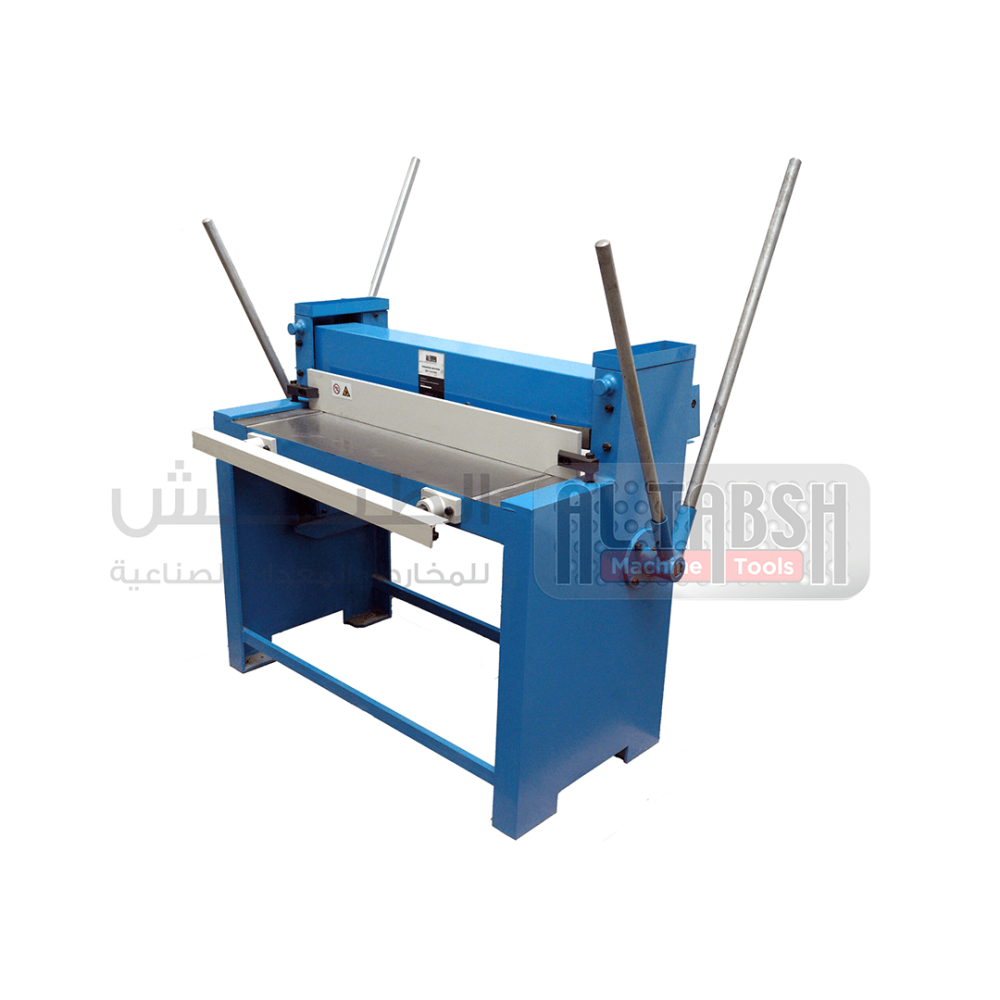

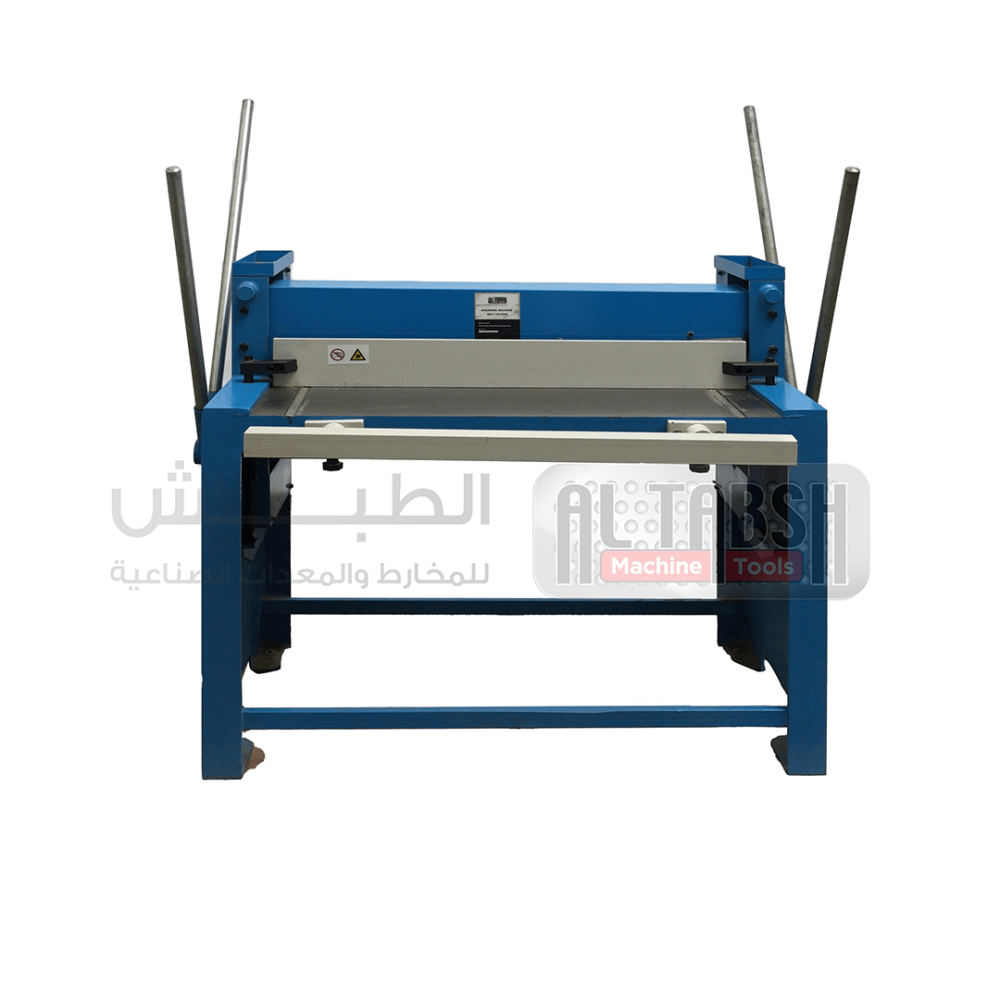

Mechanical guillotine shear providing high cutting accuracy with an optimized blade angle to reduce cutting force and improve edge quality.
Suitable for HVAC workshops, metal covers, and fabrication of light to medium‑duty structures.
Keywords
mechanical sheet shearing 1.5×1500
1.5×1500 mechanical sheet metal shear
mechanical guillotine shear 1500 mm 1.5 mm
manual plate shearing machine
manual sheet shear for duct and forming workshops
