Detailed product description

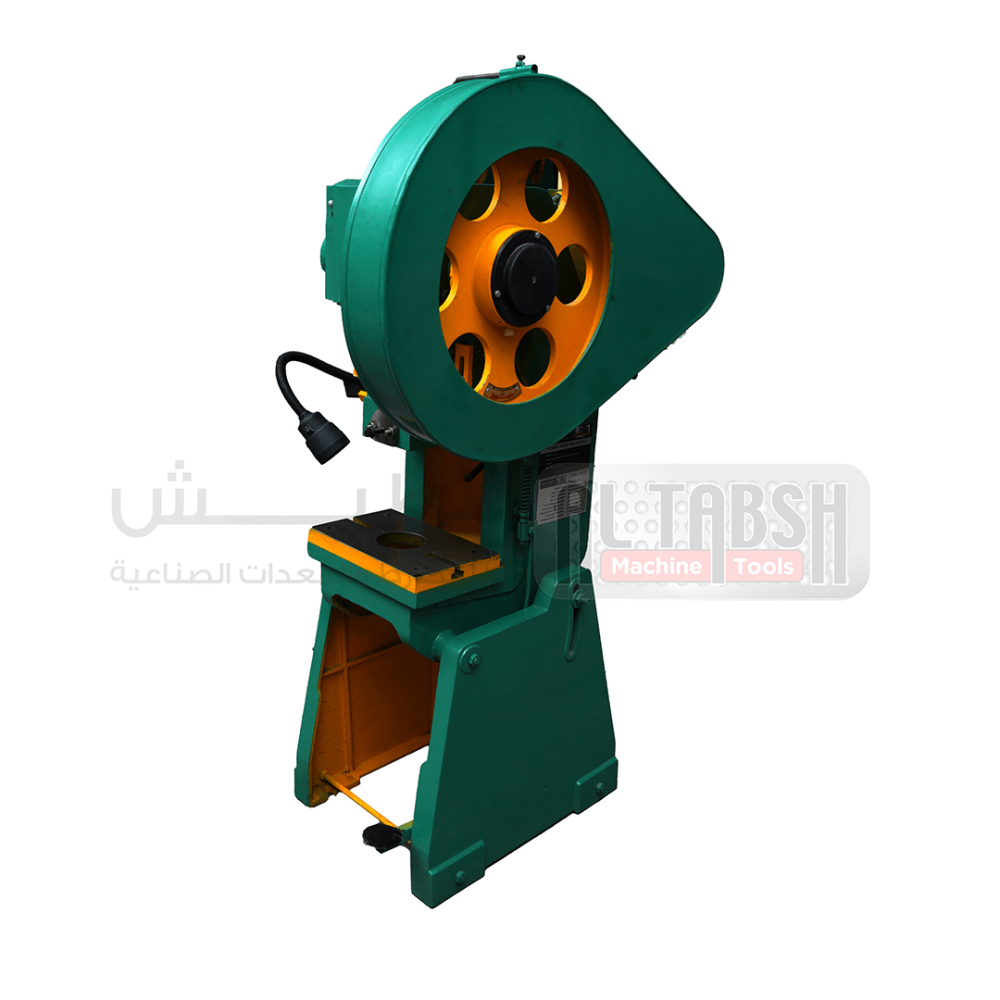

The TAB‑ECP40 is a mechanical eccentric press for relatively heavy forming, cutting, and punching operations with a nominal capacity of 400 kN (about 40 tons), suitable for industrial production lines.
It offers a 100 mm slide stroke at speeds up to 50 strokes per minute, with a shut height of 230 mm adjustable by 60 mm, and a 230 mm distance from slide center to the frame, allowing work on a range of part sizes.
The die stem diameter is 50 mm with 70 mm hole depth, 320 mm distance between uprights, 230 mm table thickness, and 380 mm die height, providing high rigidity for stable operation.
The table measures 410 mm front‑to‑back and 640 mm left‑to‑right, with a maximum frame tilting angle of 15°, driven by a 3 kW motor, and approximate overall dimensions of 1400×1200×2450 mm.

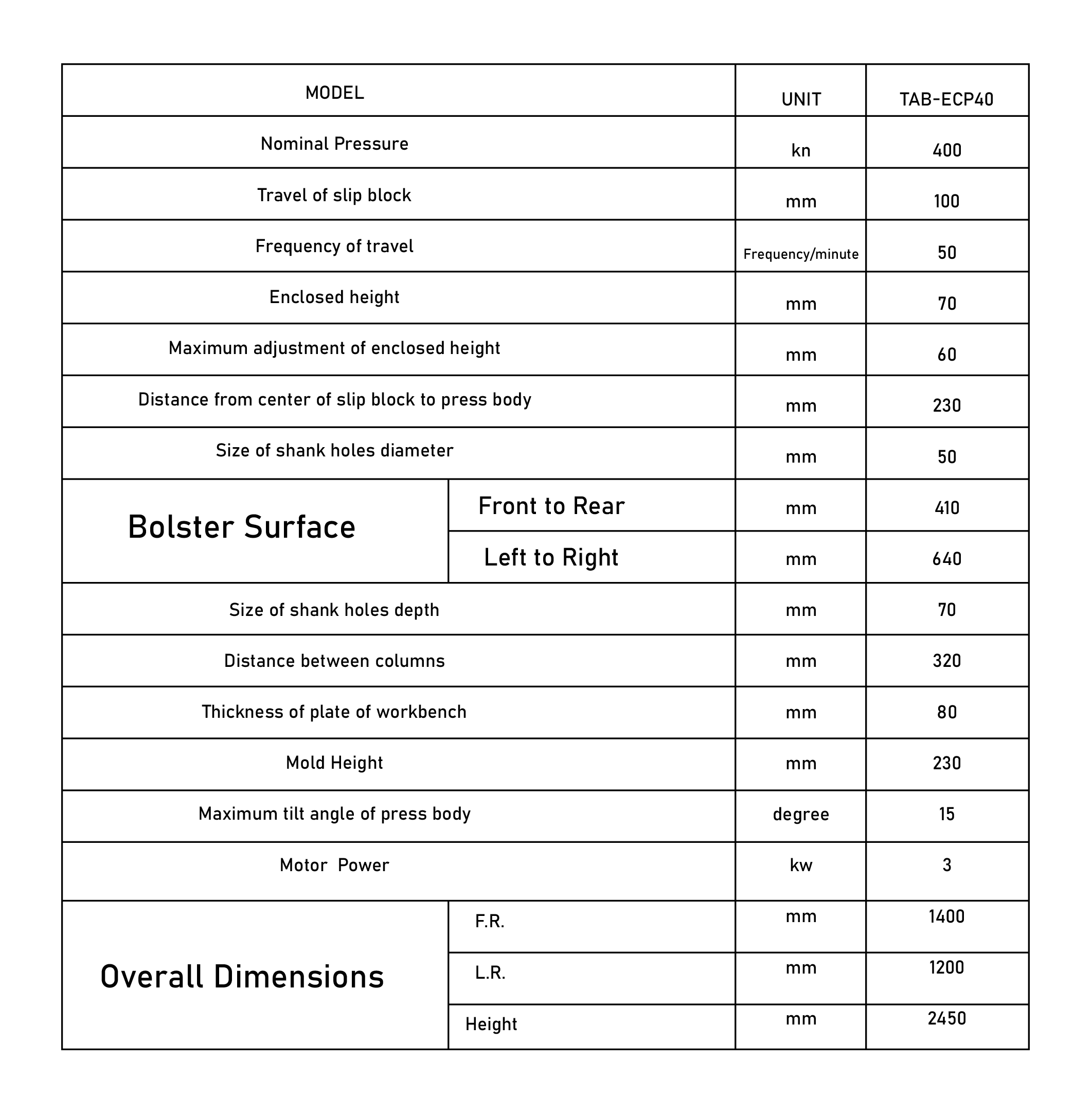

Technical specifications
Model: TAB‑ECP40
Nominal capacity: 400 kN
Slide stroke: 100 mm
Strokes per minute: 50
Shut height: 230 mm
Shut height adjustment: 60 mm
Distance from slide center to frame: 230 mm
Die stem diameter: 50 mm
Die stem hole depth: 70 mm
Table size (front–back): 410 mm
Table size (left–right): 640 mm
Distance between uprights: 320 mm
Table thickness: 230 mm
Die height: 380 mm
Maximum tilting angle: 15°
Motor power: 3 kW
Overall dimensions: approx. 1400×1200×2450 mm
