Mechanical Eccentric Press Machine TAB-ECP16

15,700

In Stock

Detailed product description

TAB‑ECP16 is a mechanical eccentric press for forming, cutting, and punching sheet metal with a nominal capacity of 160 kN (about 16 tons), suitable for sheet‑metal fabrication workshops.​

It delivers up to 110 strokes per minute with a maximum die height of 190 mm, die height adjustment of 40 mm, and 160 mm throat depth to handle various part geometries.​

The table measures 280 mm front‑to‑back and 450 mm left‑to‑right, with a 100 mm pass‑through hole, 60 mm table thickness, 160 mm column spacing, and a tilting angle up to 40°.​

Driven by a 1.5 kW motor, the press has approximate overall dimensions of 800 mm depth, 670 mm width, and 1700 mm height, providing a robust structure suitable for industrial environments.​

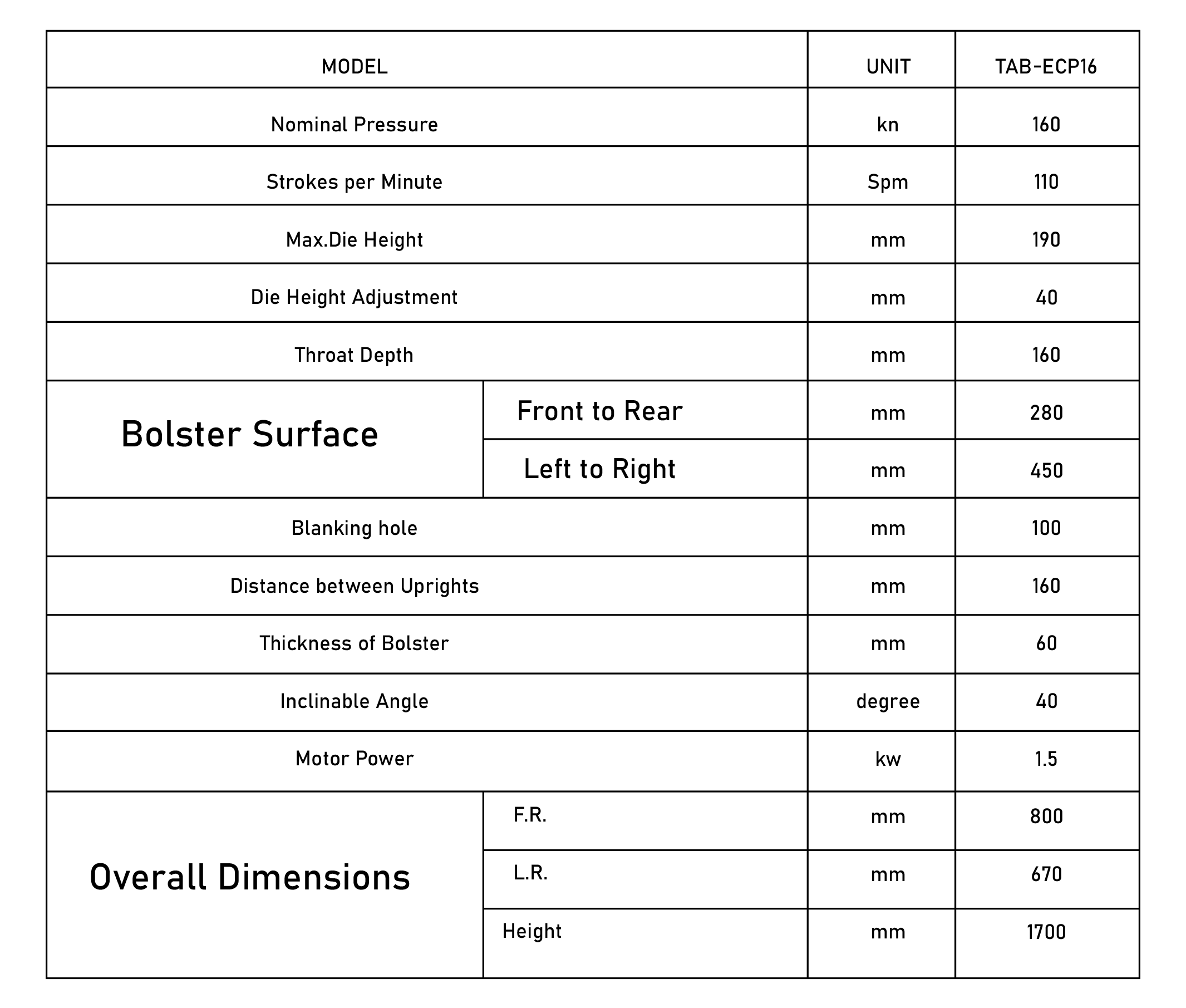

Technical specifications

Model: TAB‑ECP16

Nominal capacity: 160 kN

Strokes per minute: 110

Maximum die height: 190 mm

Die height adjustment: 40 mm

Throat depth: 160 mm

Table size (front–back): 280 mm

Table size (left–right): 450 mm

Pass‑through hole: 100 mm

Column spacing: 160 mm

Table thickness: 60 mm

Tilting angle: 40°

Motor power: 1.5 kW

Overall dimensions: approx. 800×670×1700 mm​

Keywords

Mechanical eccentric press

TAB‑ECP16

16‑ton press

Sheet‑metal forming press

Shearing and punching press

Metal‑fabrication workshop equipment

16‑ton press machine

Eccentric press

Metalworking shop press

SKU 115
Product Category Eccentric Press
Weight 1 KG
