Hydraulic Punching Machine TAB-HPU60 60 Tons
Hydraulic Punching Machine TAB-HPU60 60 Tons
Hydraulic Punching Machine TAB-HPU60 60 Tons
Hydraulic Punching Machine TAB-HPU60 60 Tons
Hydraulic Punching Machine TAB-HPU60 60 Tons
Hydraulic Punching Machine TAB-HPU60 60 Tons
Hydraulic Punching Machine TAB-HPU60 60 Tons
Hydraulic Punching Machine TAB-HPU60 60 Tons

Hydraulic Punching Machine TAB-HPU60 60 Tons

Available! Contact us for a Quote

-

Out of stock

Product Description

The TAB-HPU60 Hydraulic Punching Machine is a heavy-duty 60-ton industrial press built for high-performance metal punching applications.

Powered by 380V 3-phase, it delivers strong and stable operation suitable for factories and continuous production environments where higher force and reliable output are required.

Ideal for punching thicker sheet metal with consistent precision, durability, and controlled performance under high load.

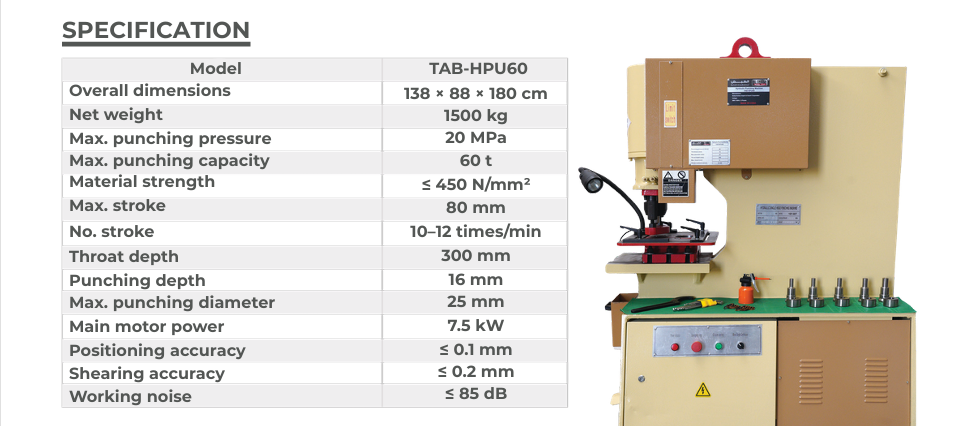

Technical Specs

General

  • Model: TAB-HPU60
  • Type: Hydraulic Punching Machine
  • Punching Force: 60 Ton
  • Max Pressure: 20 MPa
  • Material Strength: ≤ 450 N/mm²
  • Noise Level: ≤ 85 dB

Punching Capacity

  • Max Stroke: 80 mm
  • Punching Depth: 16 mm
  • Max Punch Diameter: 25 mm
  • Throat Depth: 300 mm
  • Punching Speed: 10–12 strokes/min

Accuracy

  • Positioning Accuracy: ≤ 0.1 mm
  • Shearing Accuracy: ≤ 0.2 mm

Electrical

  • Voltage: 380V / 3 Phase
  • Motor Power: 7.5 kW

Dimensions & Weight

  • Dimensions: 1380 × 880 × 1800 mm
  • Machine Weight: 1500 kg

Key Features

  • High punching force: 60 ton for heavy-duty applications
  • Suitable for thicker sheet metal and industrial use
  • Strong, stable hydraulic system for consistent output
  • High punching accuracy and repeatable results
  • Excellent performance for continuous operation
  • Industrial-grade construction for high load durability
  • Ideal for factories and production lines
