Product Description
The TAB-HPU45 Hydraulic Punching Machine is a 45-ton industrial press designed for efficient and precise metal punching operations.
Powered by 380V 3-phase, it provides stable hydraulic performance for workshops and factory production lines.
Ideal for punching sheet metal with consistent accuracy, reliable output, and a durable structure suitable for continuous work.

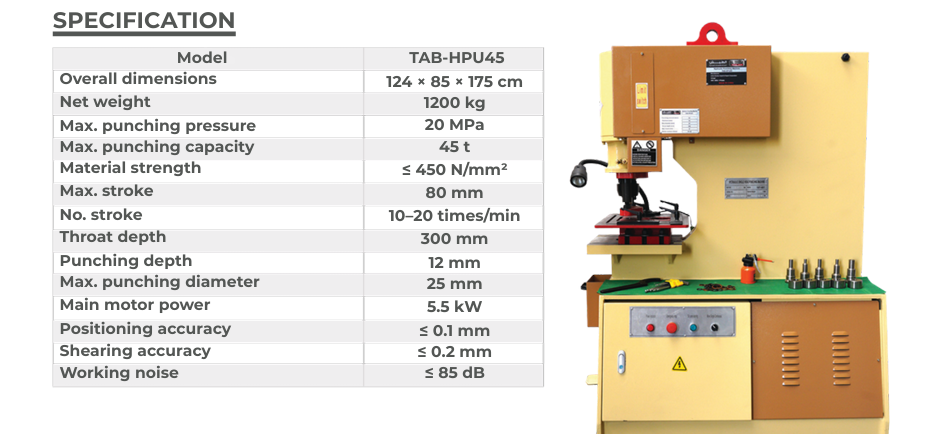

Technical Specs
General
- Model: TAB-HPU45
- Type: Hydraulic Punching Machine
- Punching Force: 45 Ton
- Max Pressure: 20 MPa
- Material Strength: ≤ 450 N/mm²
- Noise Level: ≤ 85 dB
Punching Capacity
- Max Stroke: 80 mm
- Punching Depth: 12 mm
- Max Punch Diameter: 25 mm
- Throat Depth: 300 mm
- Punching Speed: 10–20 strokes/min
Accuracy
- Positioning Accuracy: ≤ 0.1 mm
- Shearing Accuracy: ≤ 0.2 mm
Electrical
- Voltage: 380V / 3 Phase
- Motor Power: 5.5 kW
Dimensions & Weight
- Dimensions: 1240 × 850 × 1750 mm
- Machine Weight: 1200 kg
Key Features
- 45-ton punching force for heavy industrial applications
- High punching accuracy and consistent results
- Strong and stable hydraulic system
- Suitable for various sheet metal materials
- Safe and easy operation
- Good production speed (up to 20 strokes/min)
- Durable construction for continuous workshop and factory use
