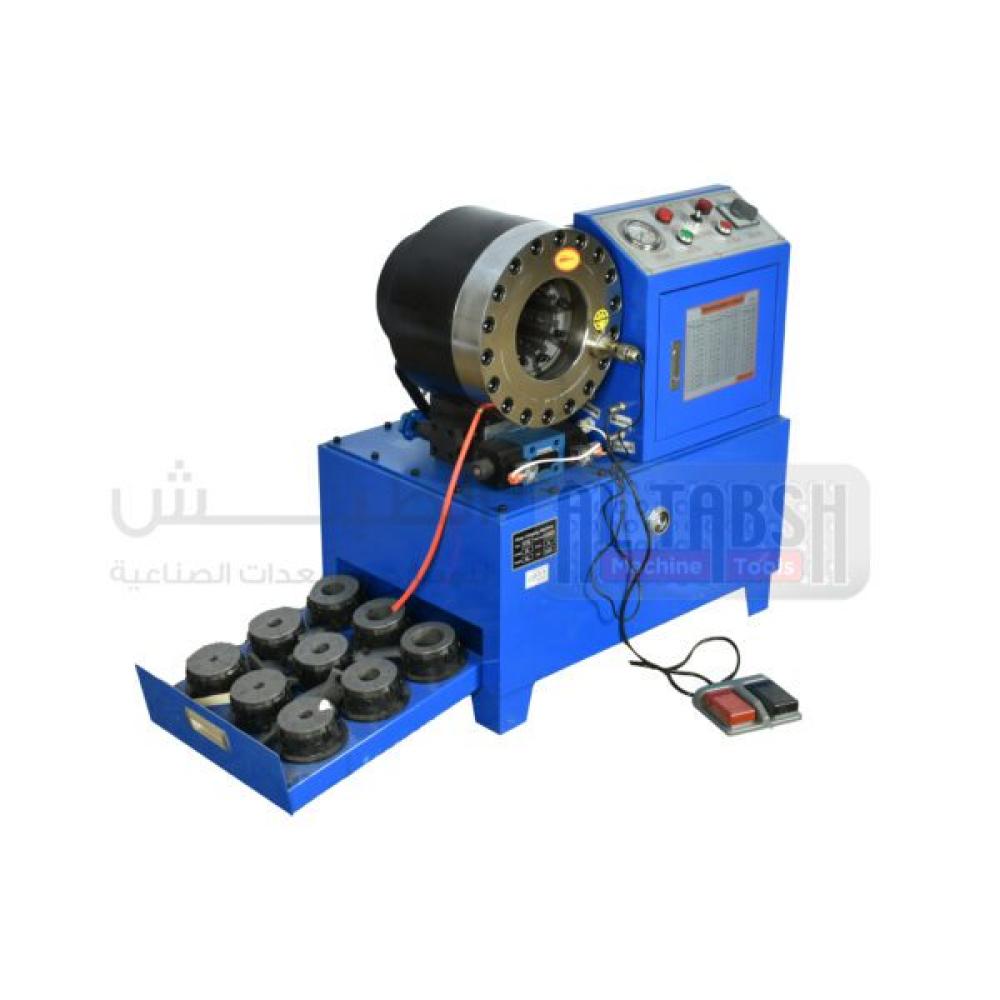

Product Description

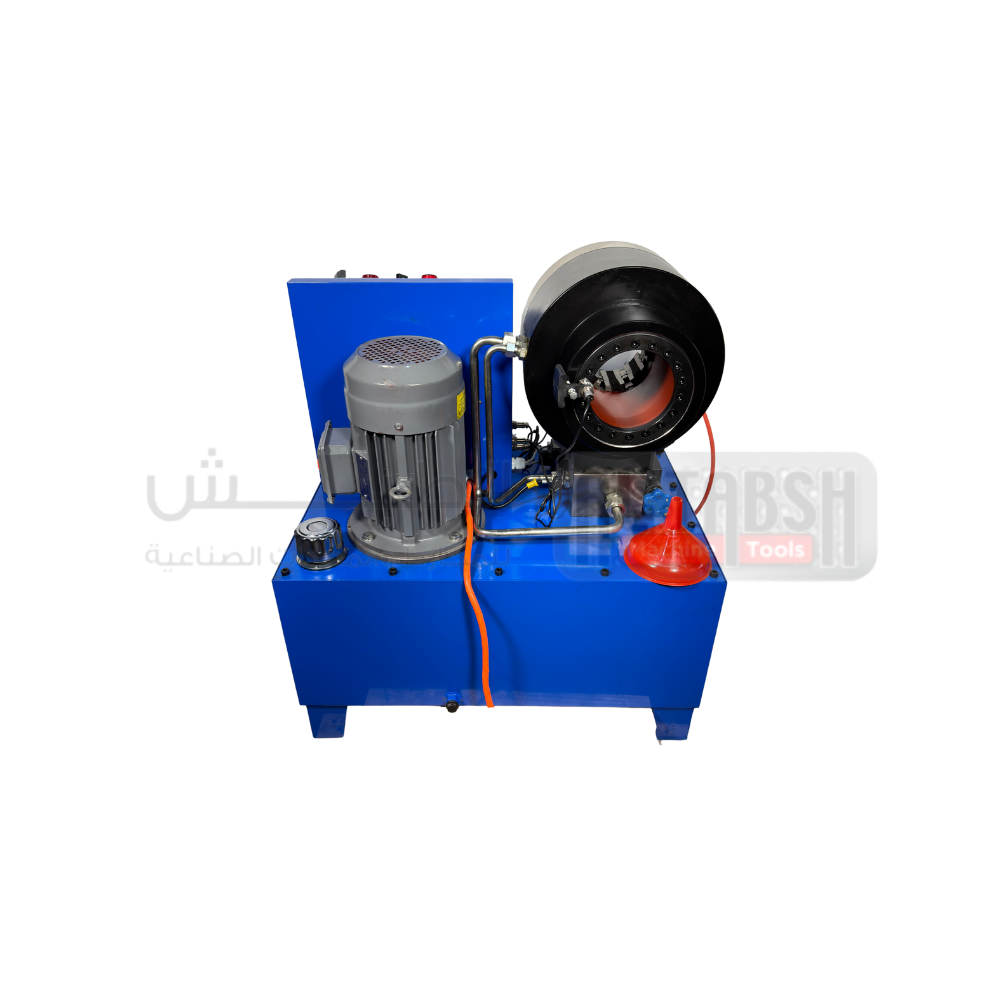

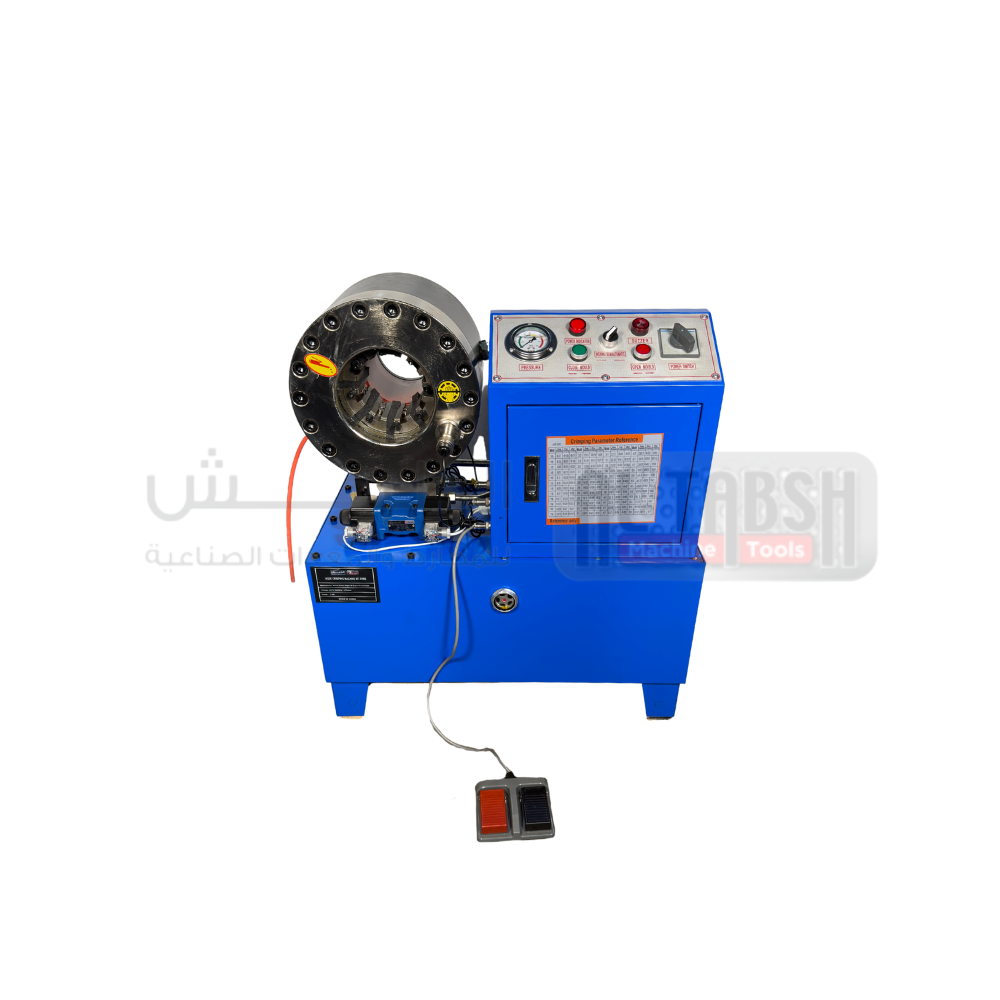

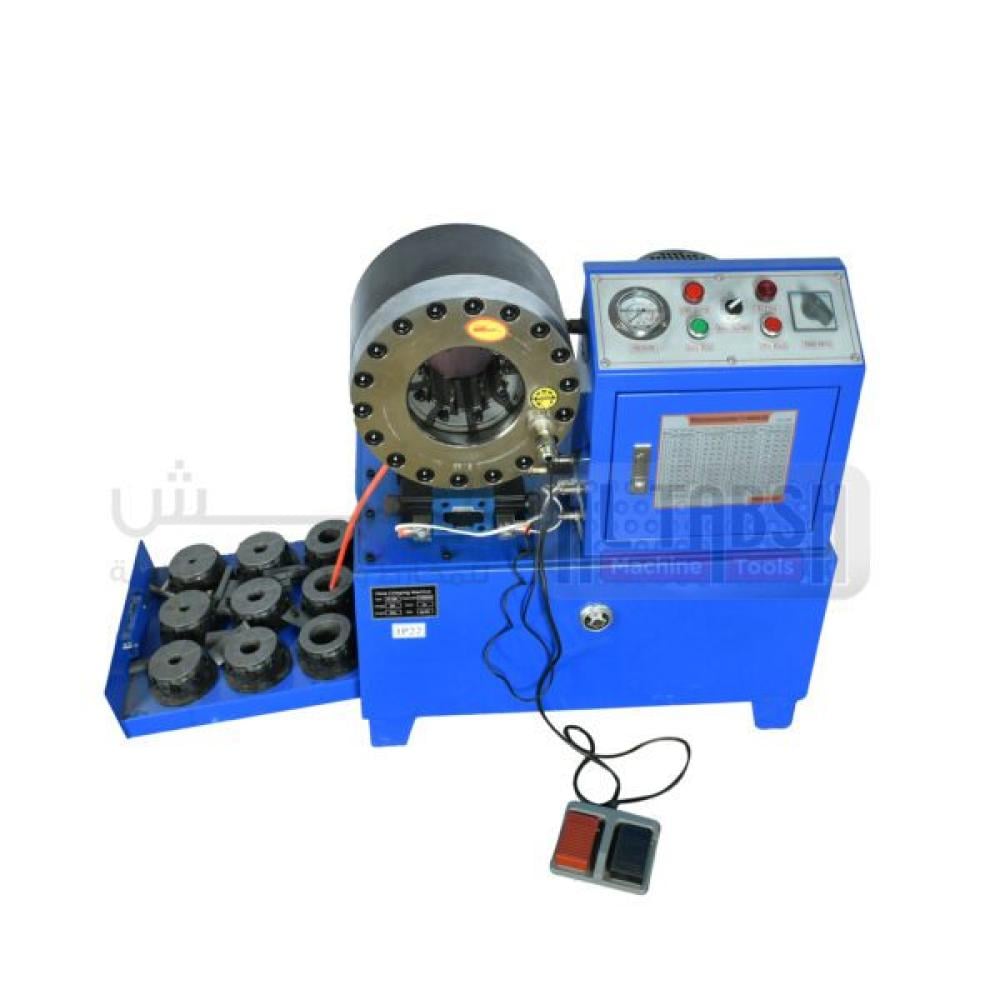

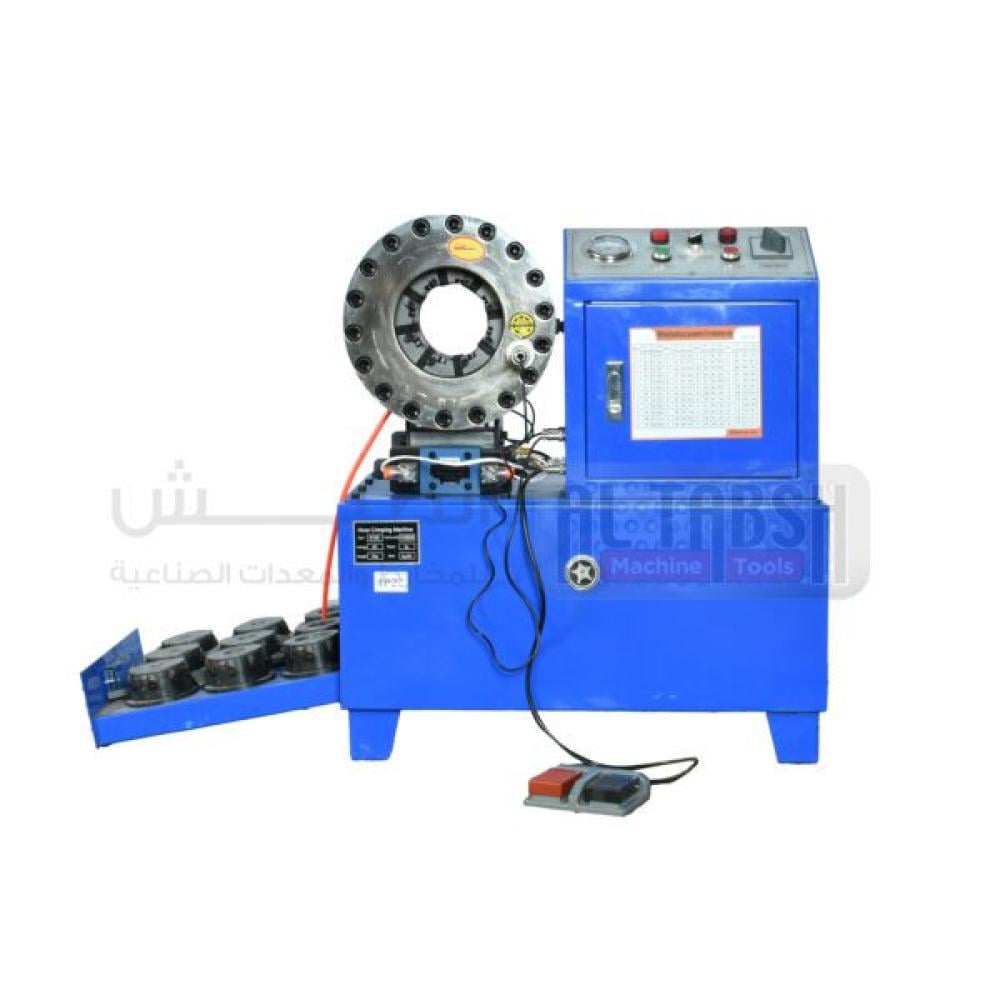

The MT-51WS Hydraulic Hose Crimping Machine is designed for professional hydraulic hose crimping up to 2 inch (4SN) capacity.
It features an English control panel with foot pedal operation for efficient workflow and safer hands-free control. Available in 220V 3-phase or 380V 3-phase configurations, it fits different workshop power setups.

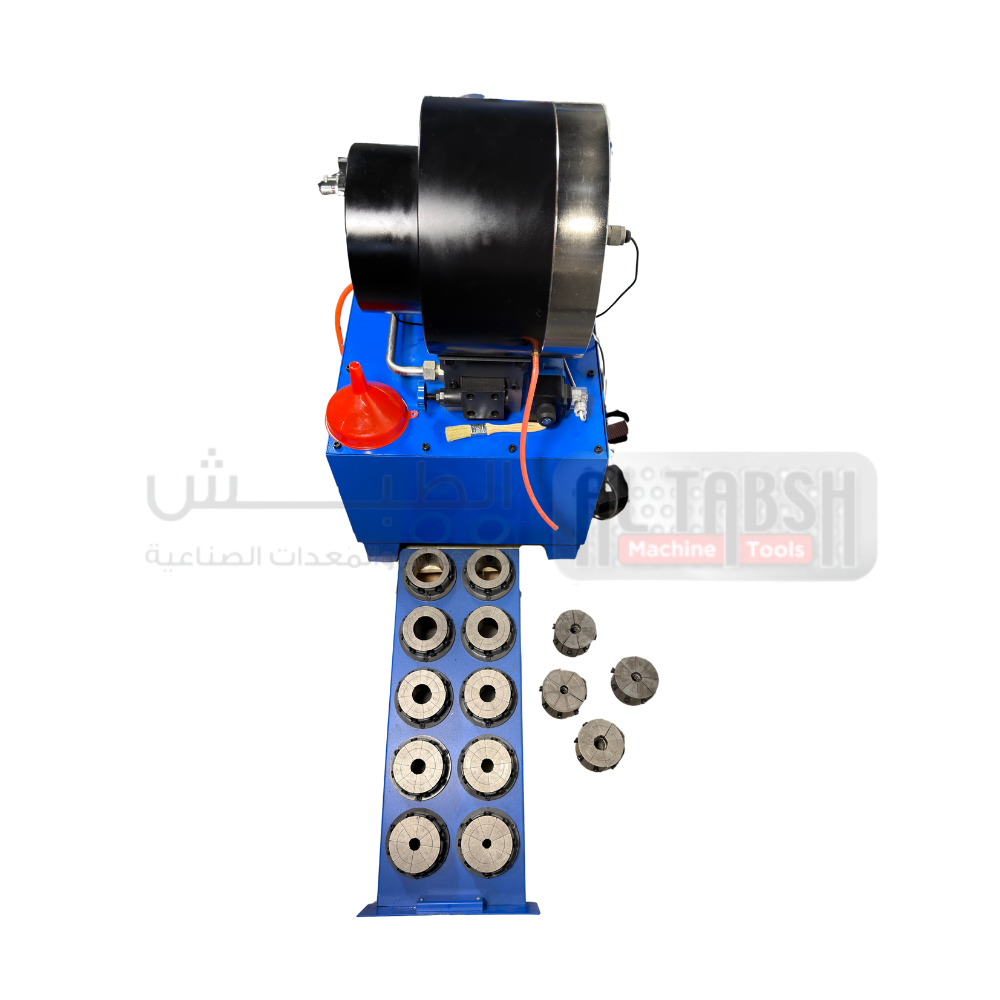

Supplied with 14 die sets and a large 114 mm maximum opening, it is an ideal solution for medium to heavy-duty hydraulic hose workshops.

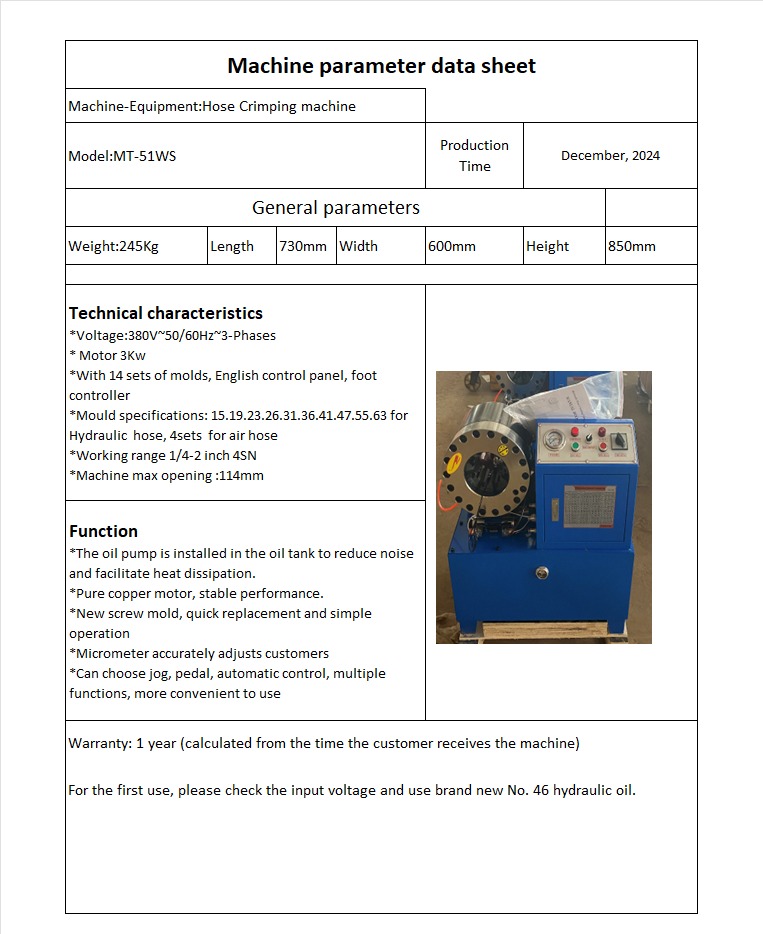

Technical Specs
General
- Model: MT-51WS
- Working Range: 1/4″ – 2″ (4SN)

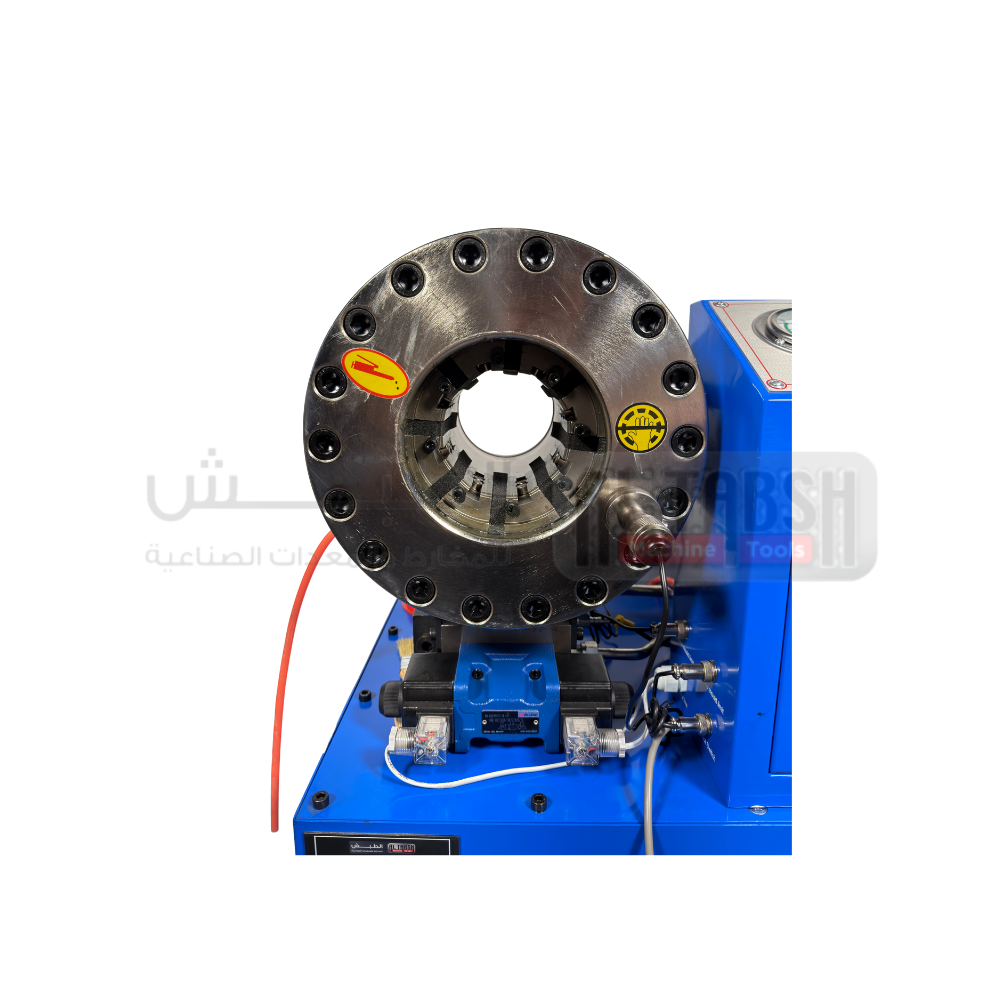

- Machine Max Opening: 114 mm
- Motor Power: 3 kW
- Production Batch: December 2024

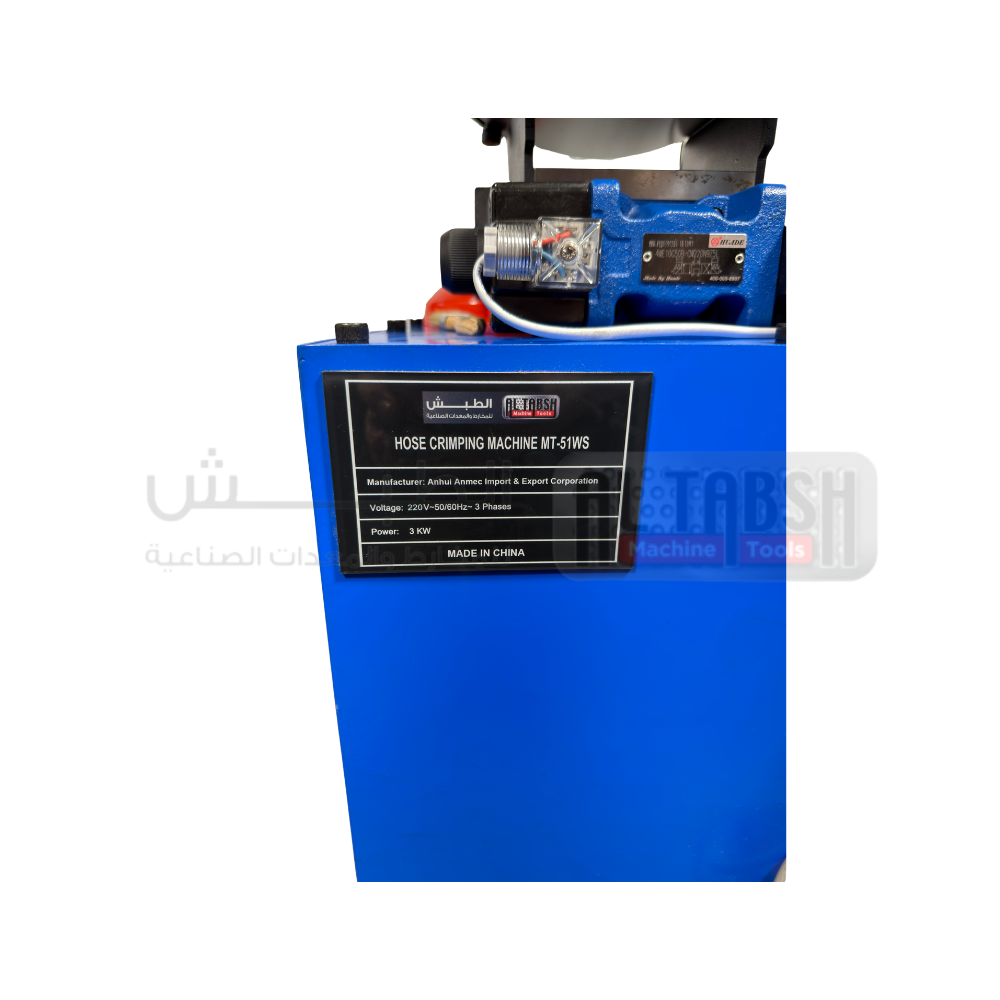

Electrical Options
- 220V – 60Hz – 3 Phase
- 380V – 50/60Hz – 3 Phase

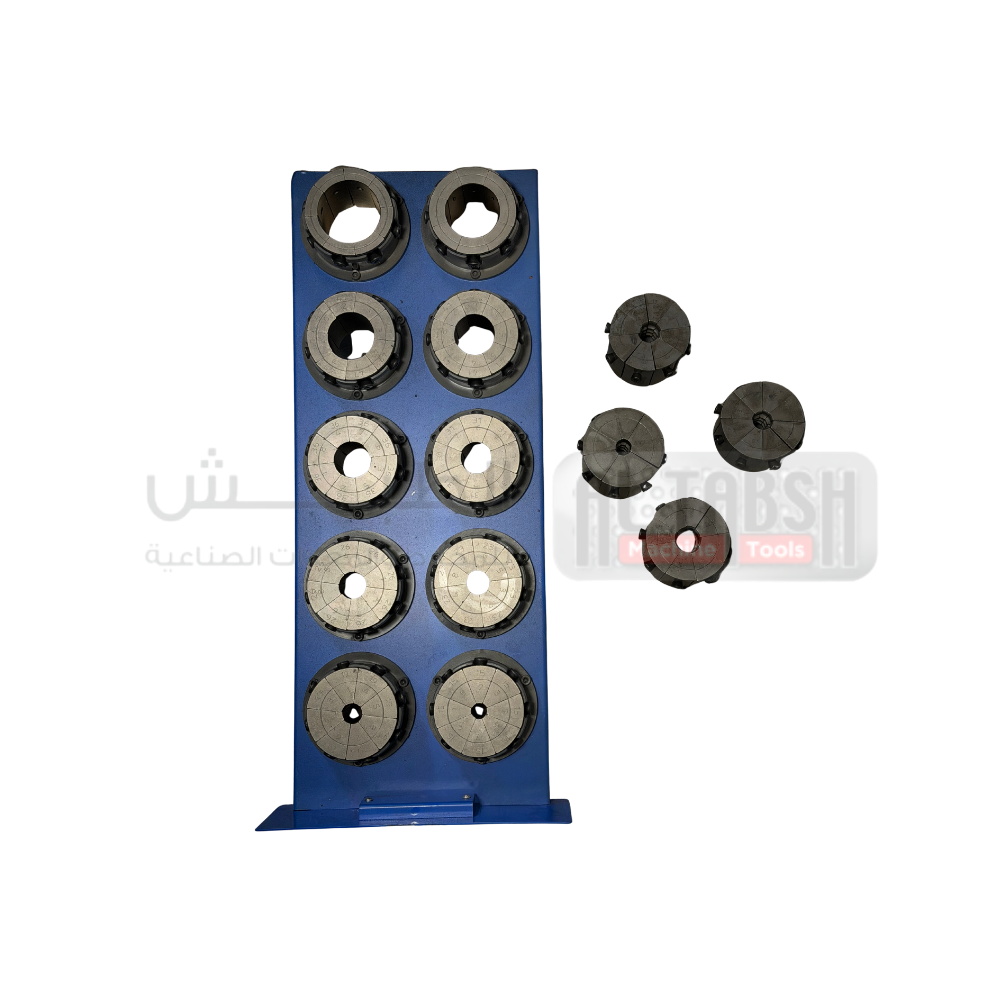

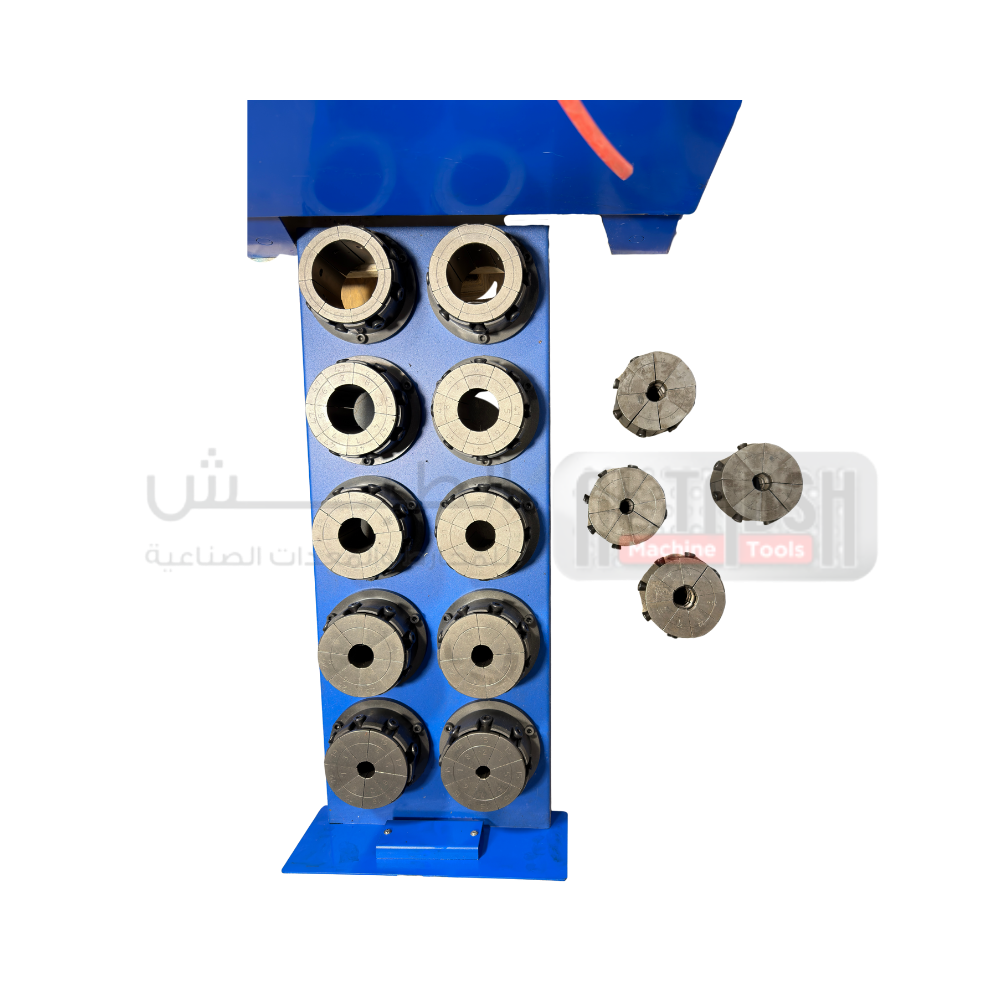

Dies (Mold Specifications)
- Die Sizes (mm): 15 – 19 – 23 – 26 – 31 – 36 – 41 – 47 – 55 – 63
- Die Sets: 14 Sets (including sets for hydraulic hose + air hose)
Dimensions
- Length: 730 mm
- Width: 600 mm
- Height: 850 mm
Weight
- Net Weight: 245 kg
Key Features

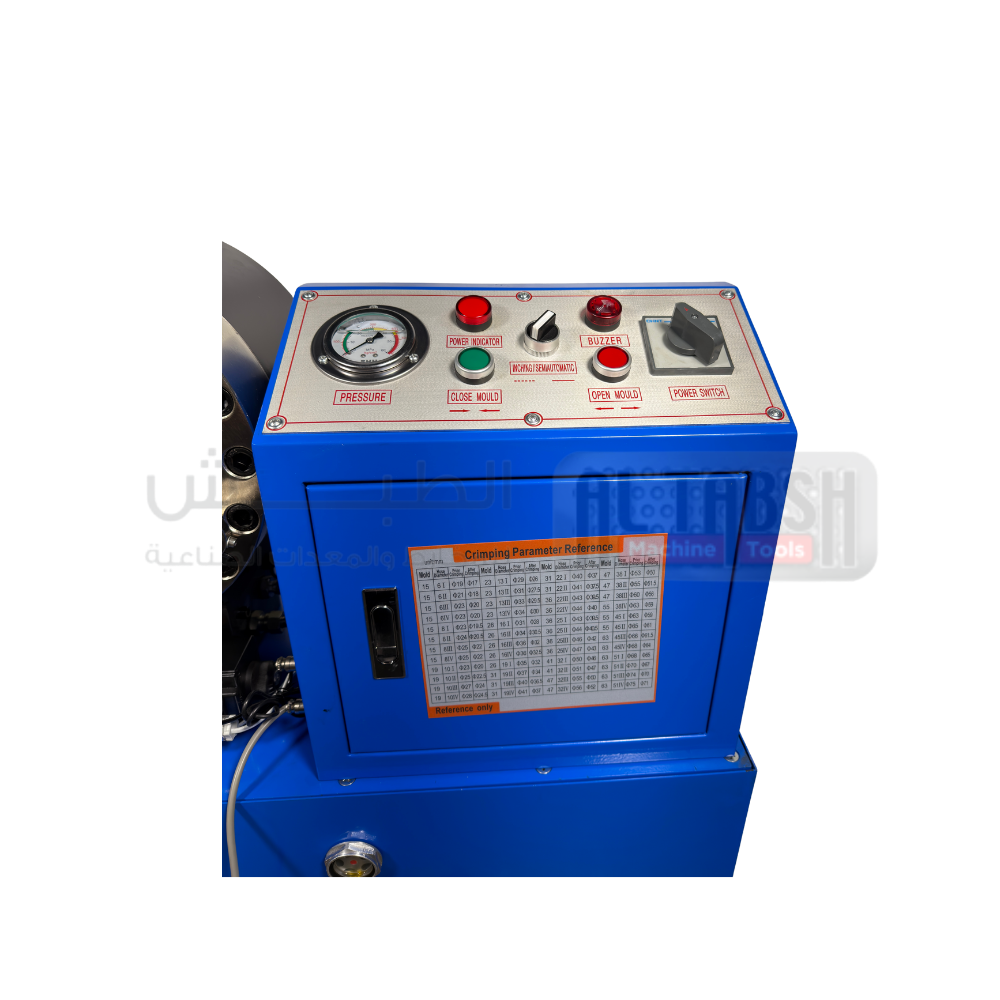

- English control panel

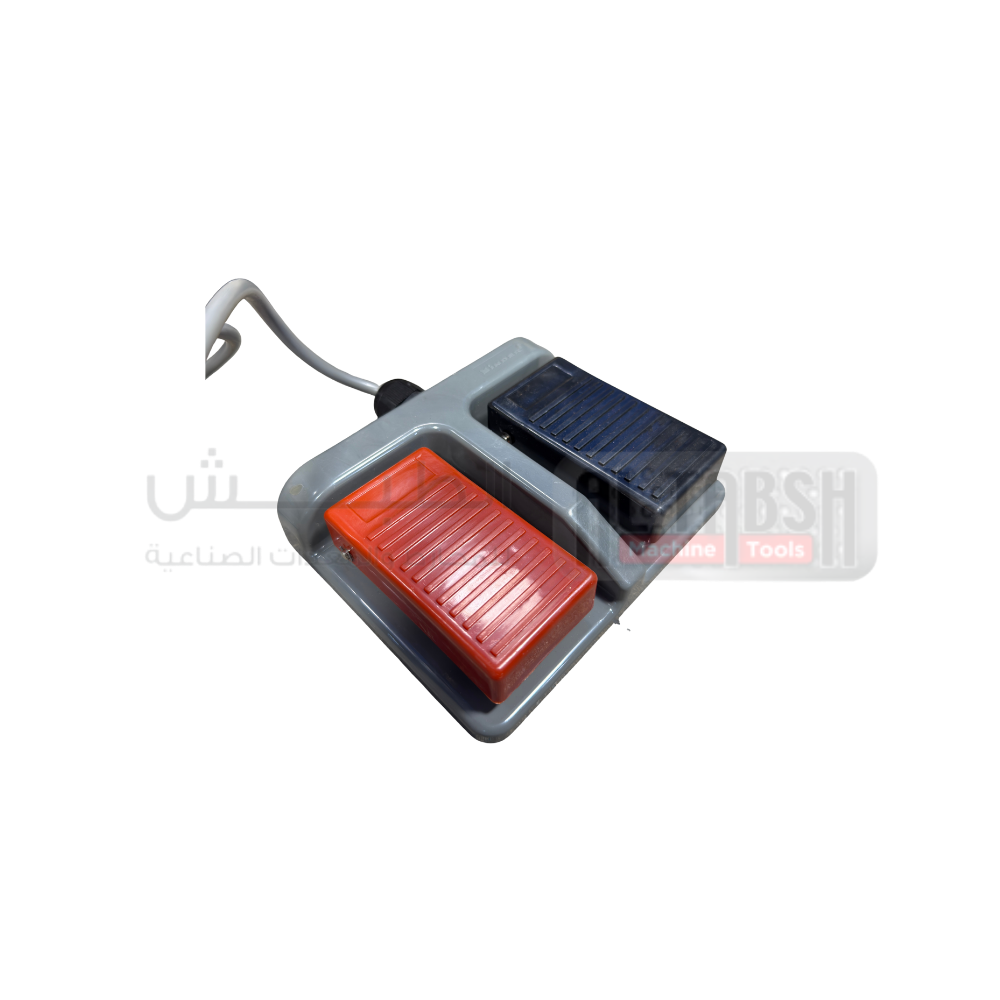

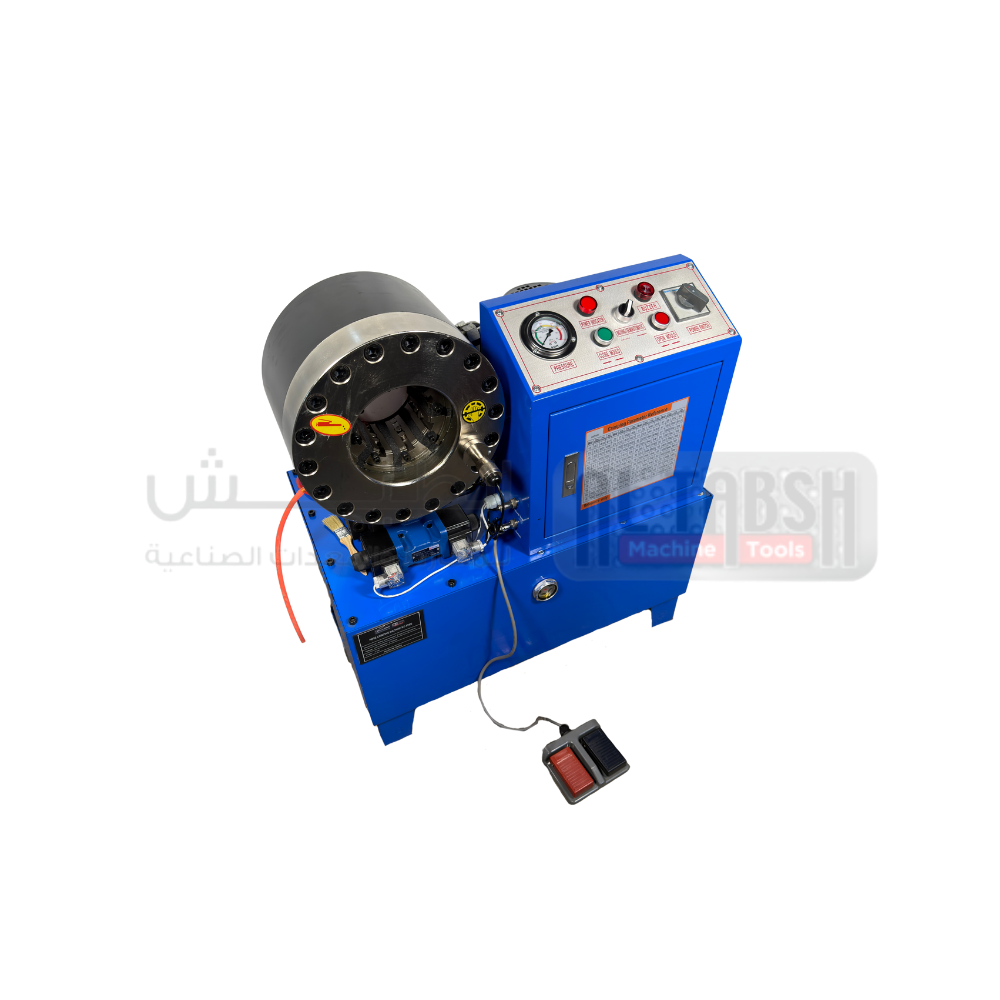

- Foot pedal operation
- Jog + Automatic control modes
- Micrometer setting system for accurate crimping

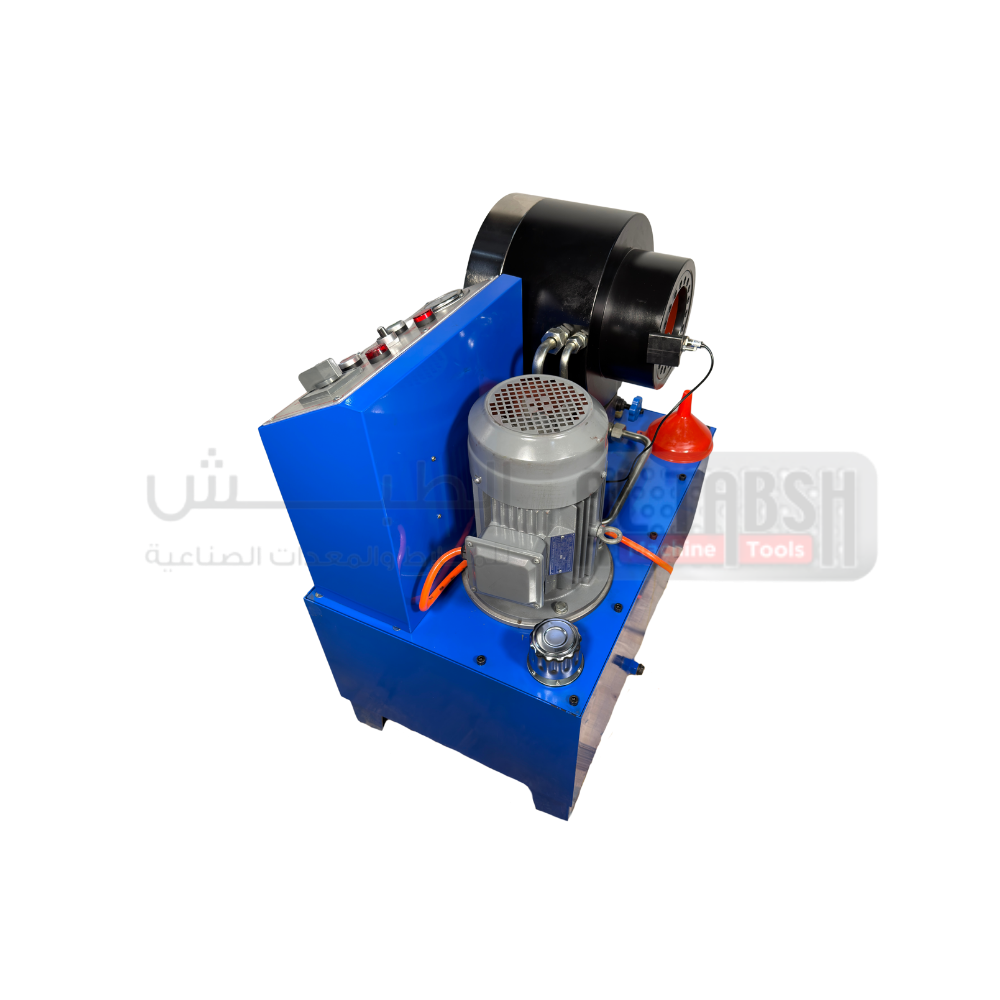

- Oil pump inside the tank for lower noise
- Full copper motor for stable performance
- Fast and easy die change system
