Product Description

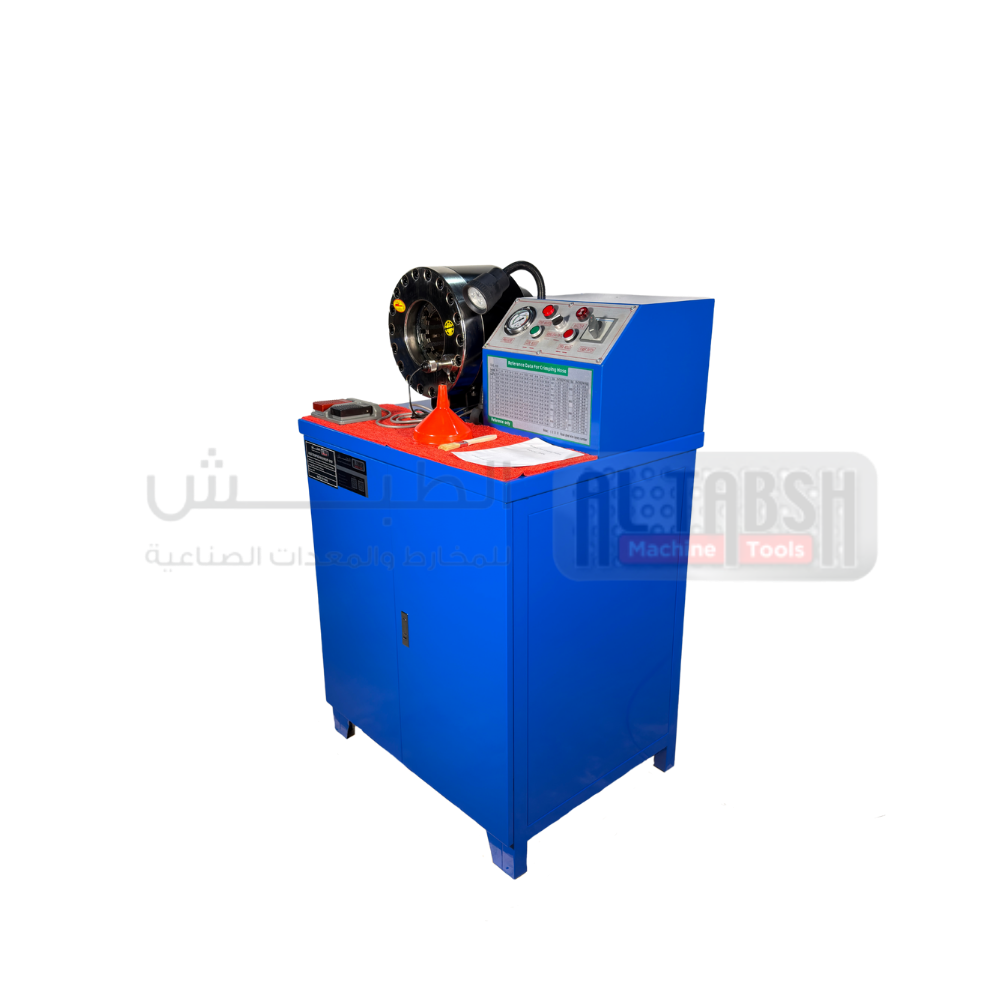

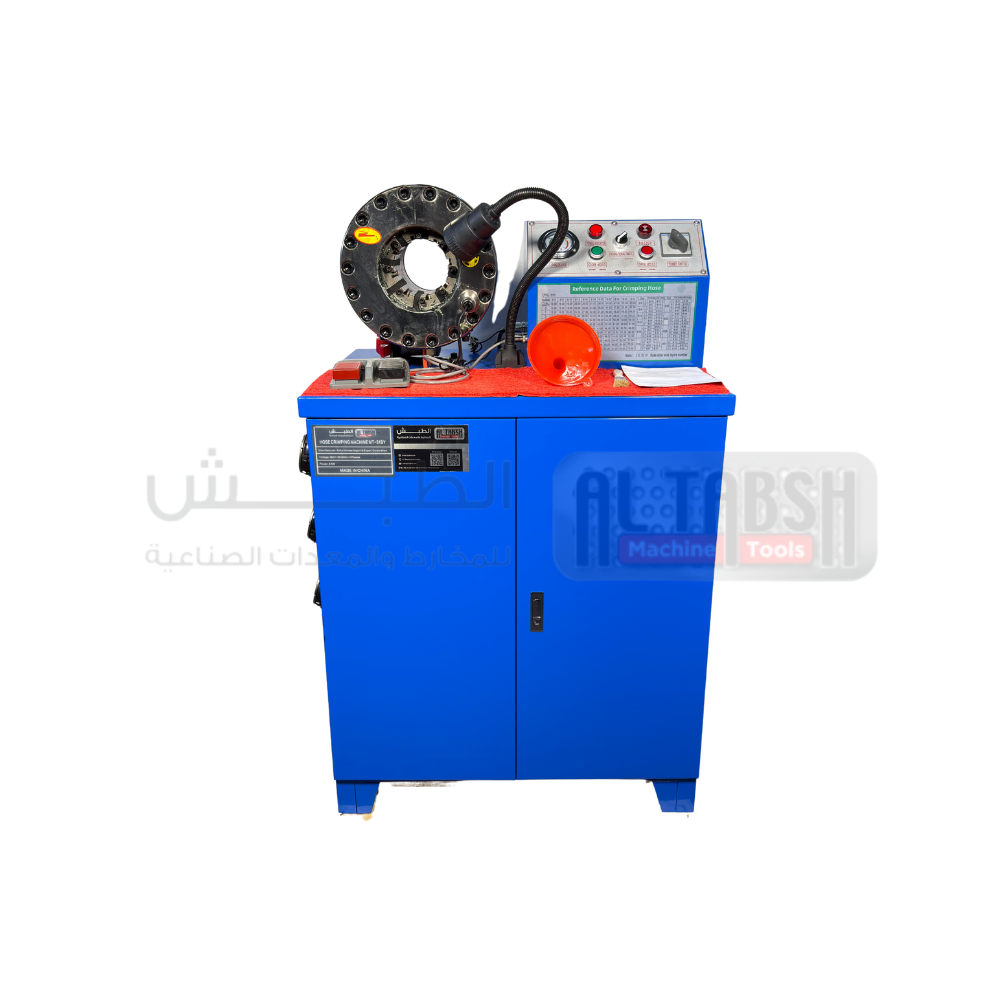

The MT-51BY Hydraulic Hose Crimping Machine is designed for crimping hydraulic hoses up to 2 inch (4SN) capacity.

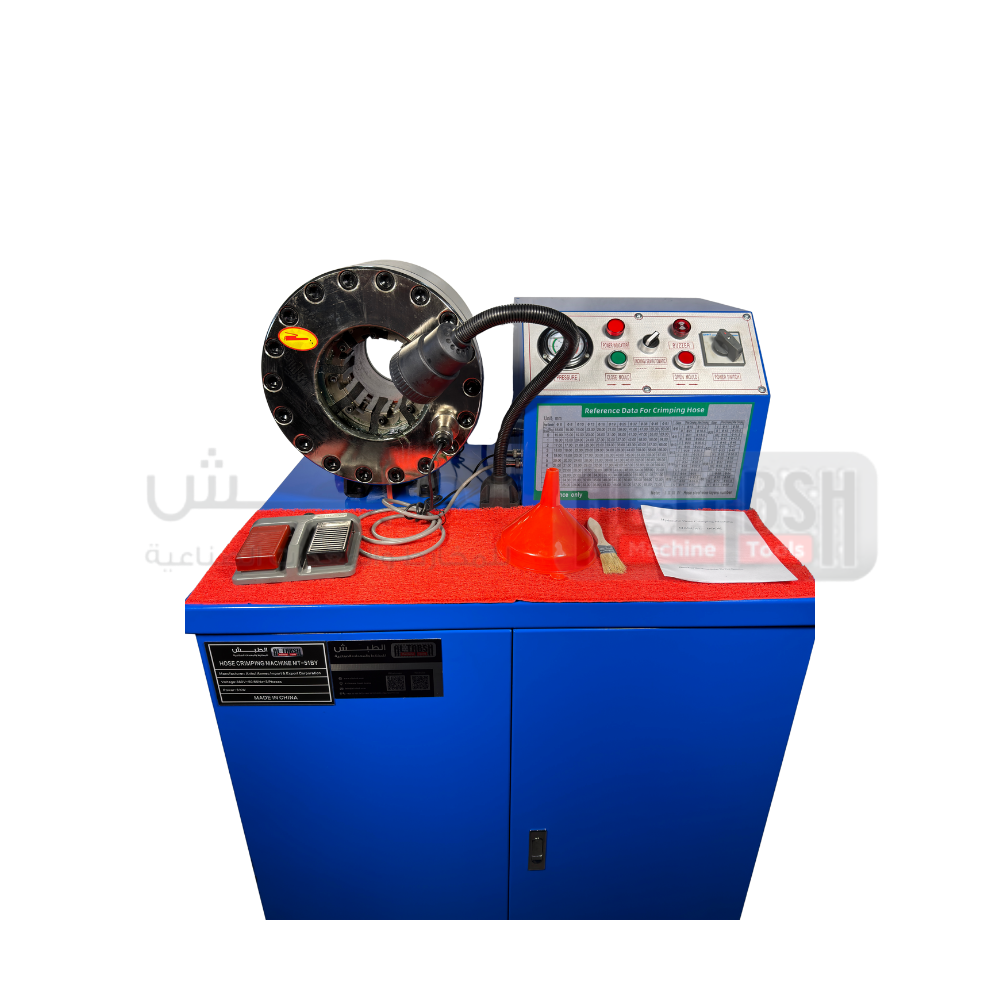

Its cabinet-style design provides lower storage space to keep dies and tools organized, making it a practical choice for busy workshops.
Powered by 380V 3-phase Or 220V 3-phase, it comes with an English control panel and foot pedal operation, with both Jog (manual) and Automatic working modes. It is ideal for professional hydraulic workshops, service centers, and heavy-duty industrial applications.

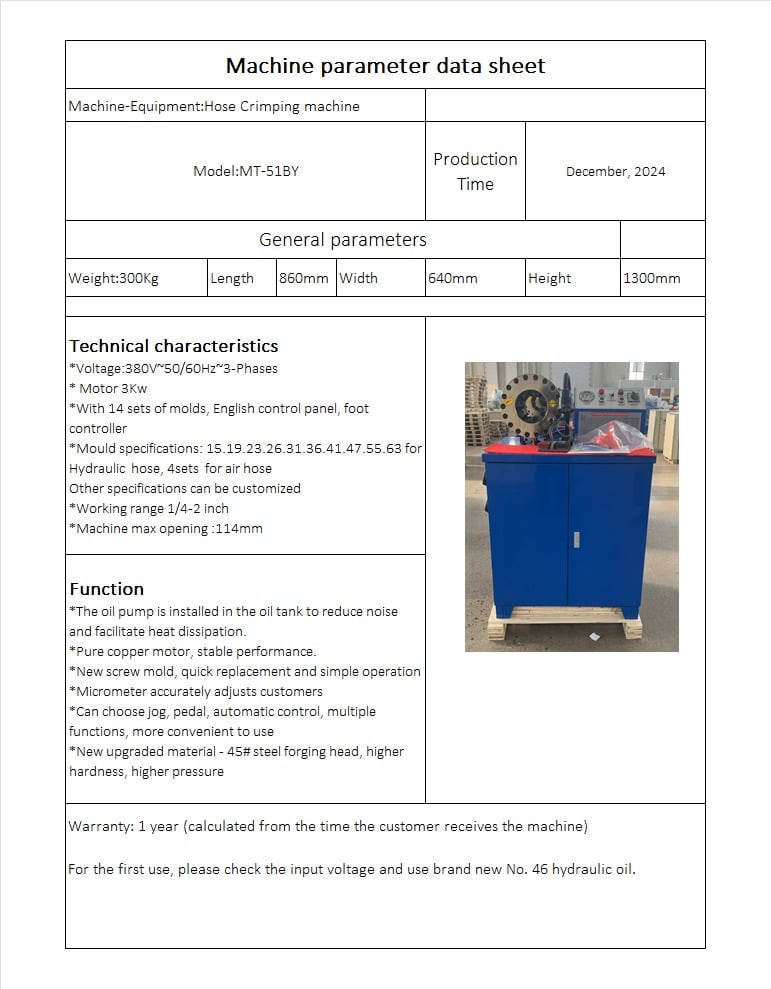

Technical Specs
General
- Model: MT-51BY
- Working Range: 1/4″ – 2″
- Machine Max Opening: 114 mm
- Voltage: 380V – 50/60Hz – 3 Phase | 220V – 50/60Hz – 3 Phase
- Motor Power: 3 kW
- Production Batch: December 2024
- Customization: Available upon request
Dies (Mold Specifications)
- Die Sizes (mm): 15 – 19 – 23 – 26 – 31 – 36 – 41 – 47 – 55 – 63

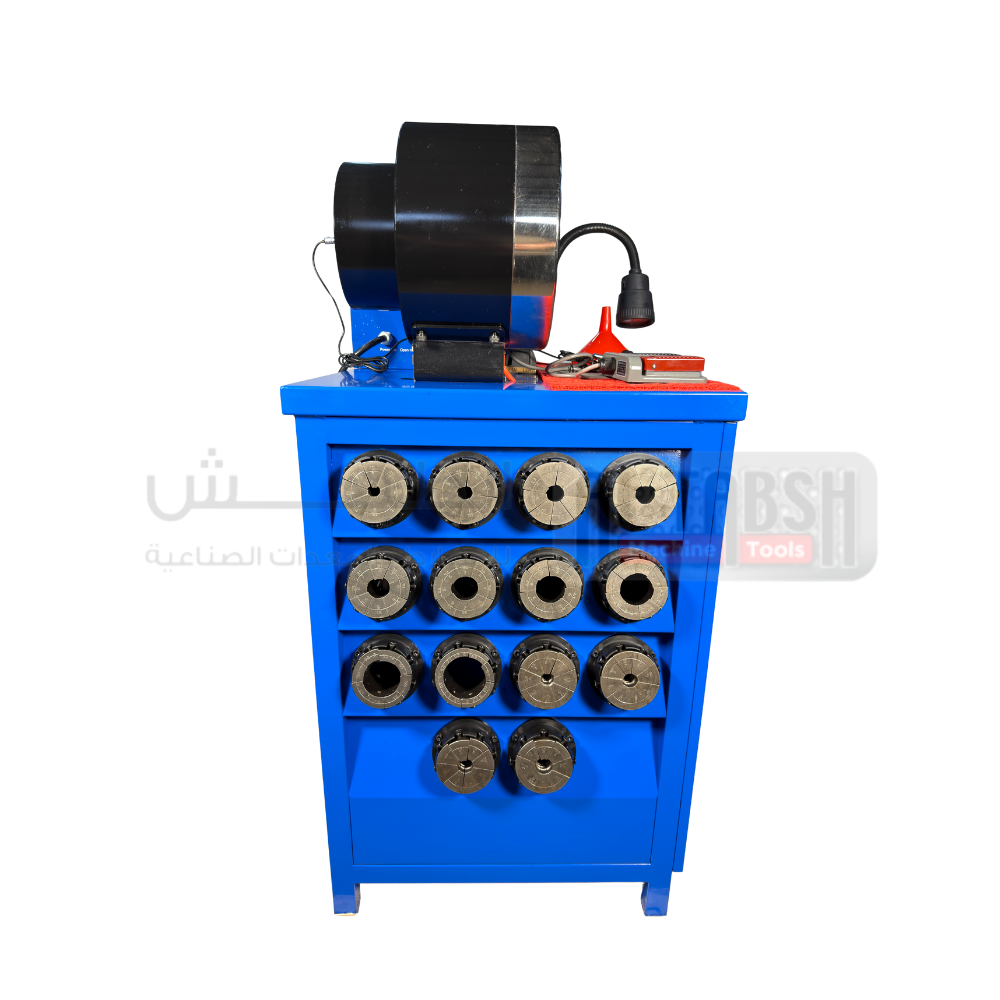

- Die Sets: 14 Sets (including sets for hydraulic hose + air hose)
Dimensions
- Length: 860 mm
- Width: 640 mm
- Height: 1300 mm
Weight
- Net Weight: 300 kg
Key Features
- Cabinet design with built-in storage base

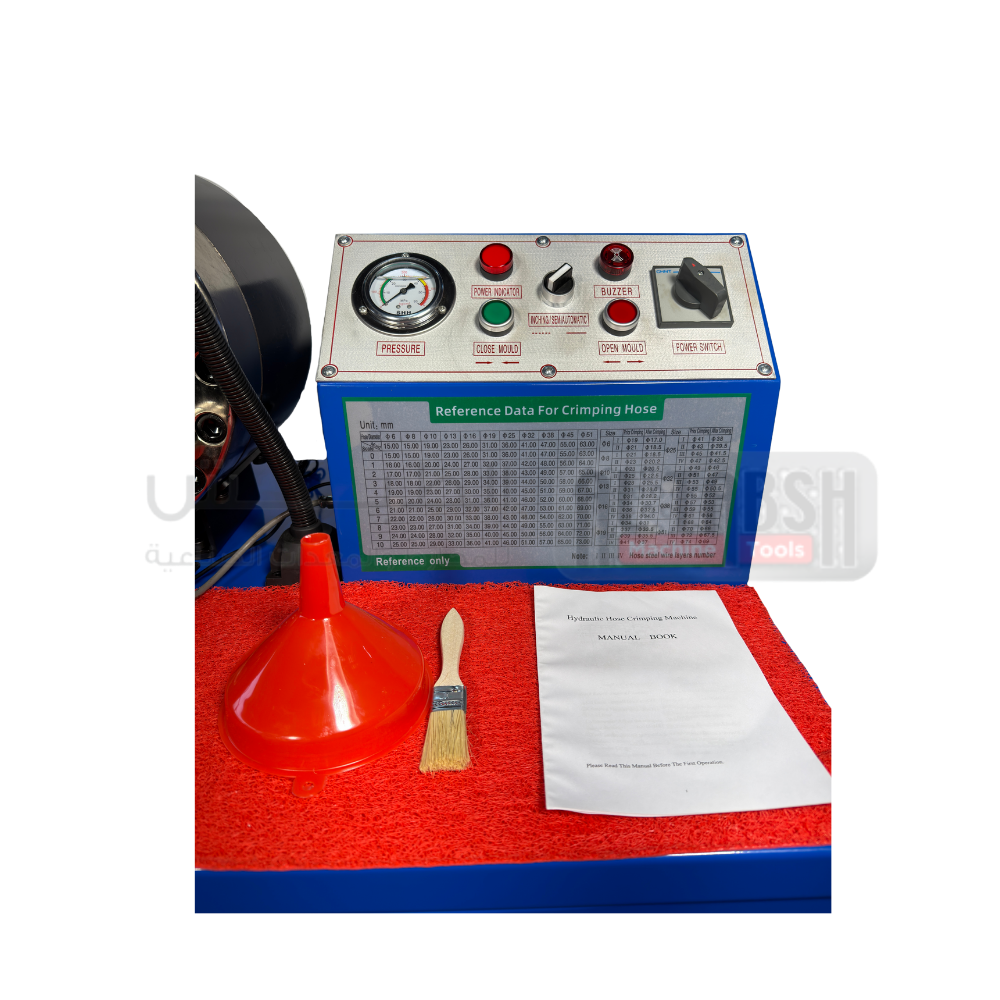

- English control panel

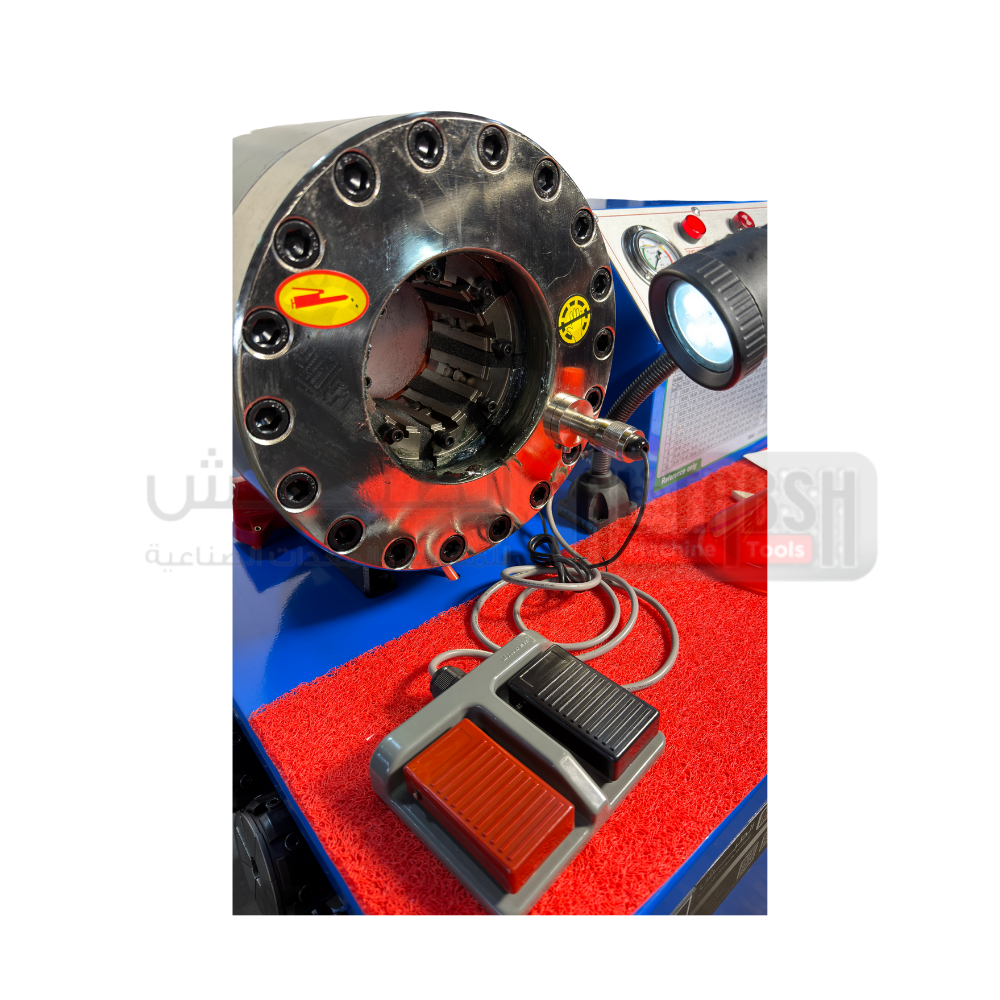

- Foot pedal operation
- Jog + Automatic control modes

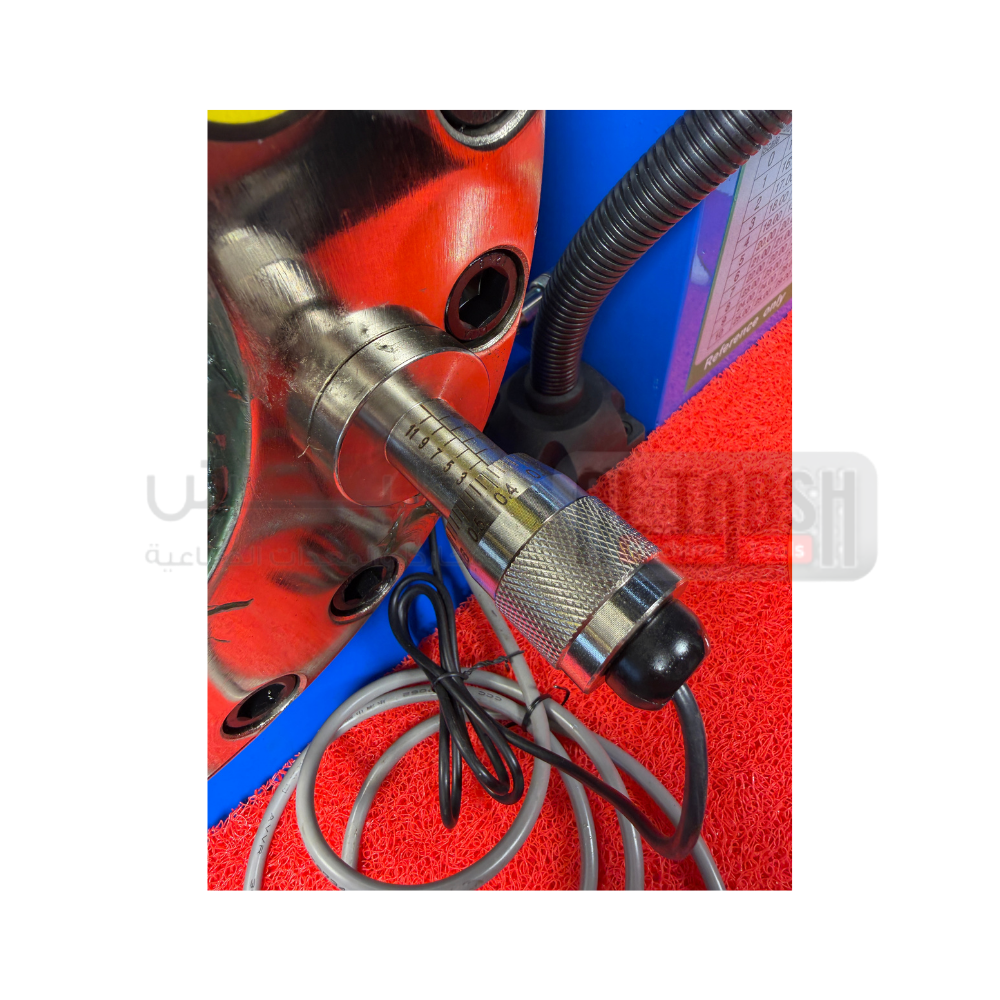

- Micrometer setting system for accurate crimping

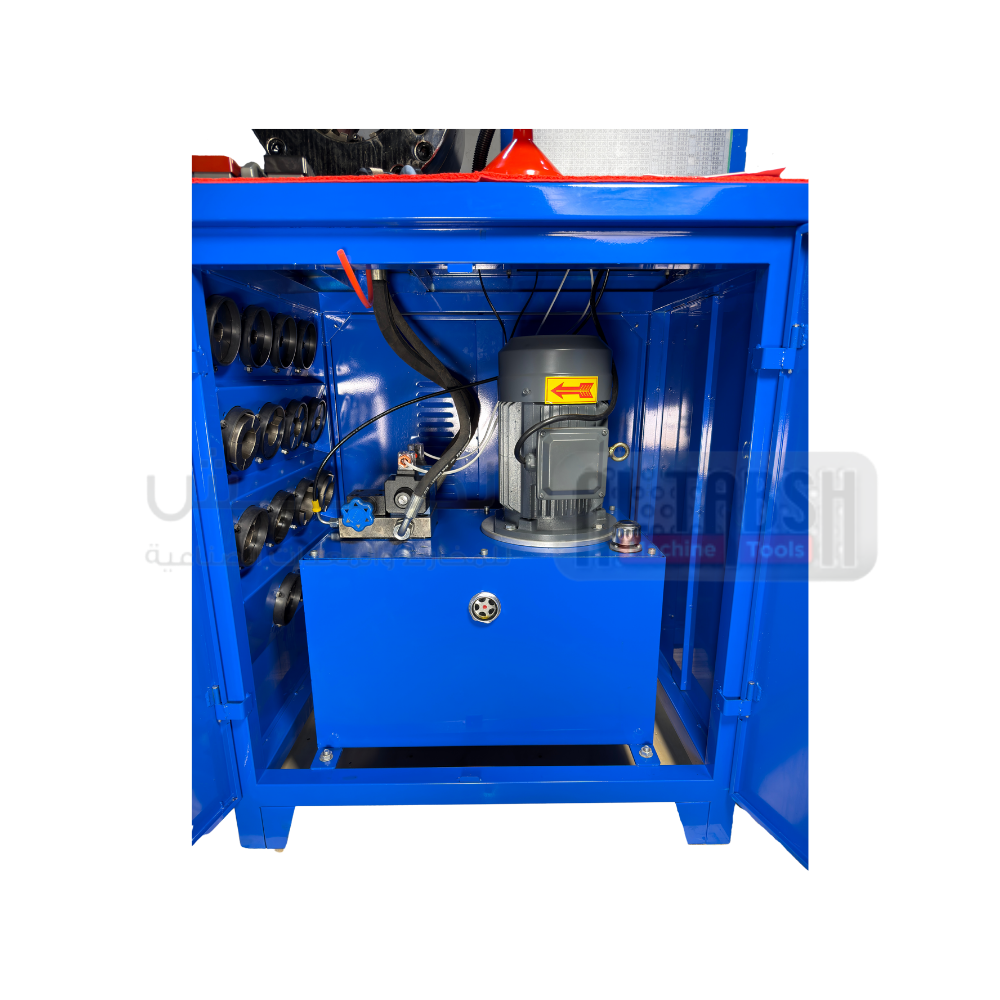

- Oil pump inside the tank for lower noise
- Full copper motor for stable performance

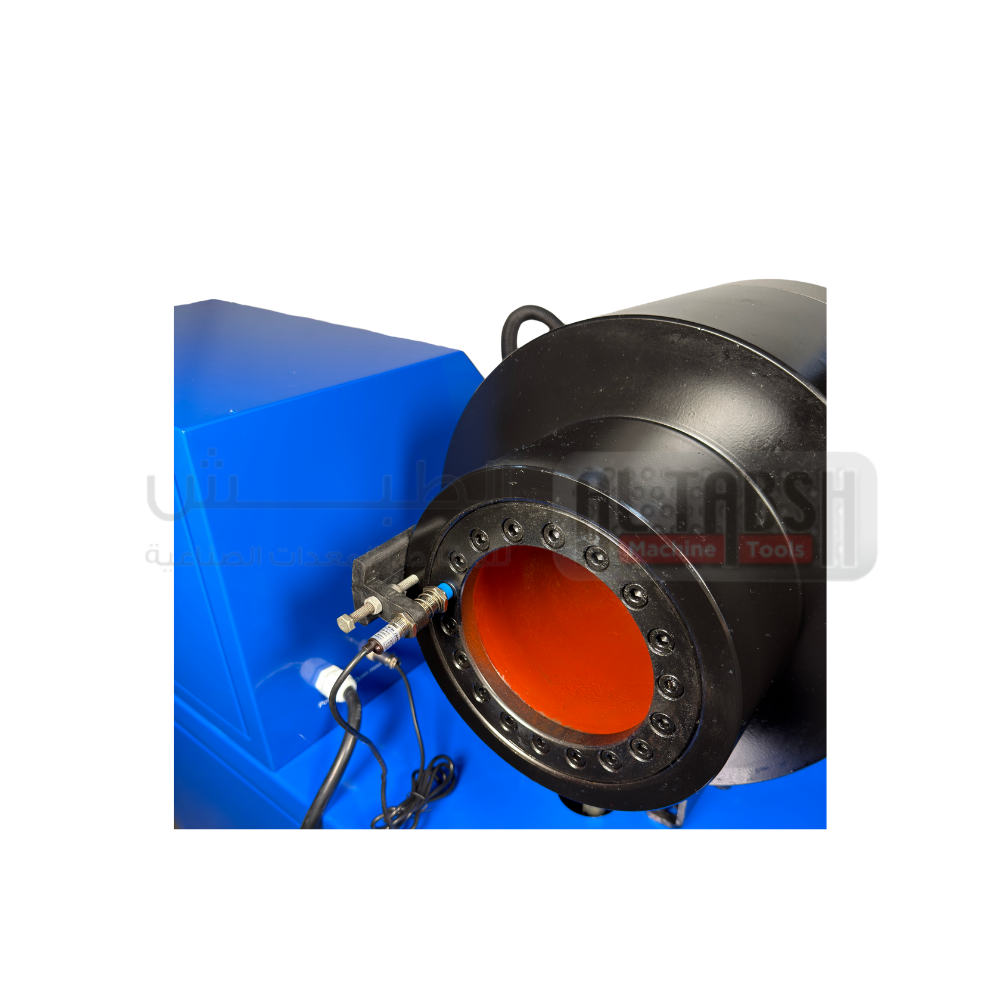

- Forged 45# steel head for higher pressure resistance
- Fast and easy die change system
