The MT-102 Hydraulic Hose Crimping Machine is built for heavy-duty crimping applications up to 4 inch (4SN) hydraulic hoses.
Powered by a 380V 3-phase supply with a 4 kW motor, it is ideal for large hydraulic workshops and industrial plants that require high-pressure crimping for large-diameter hoses.
It features a large 190 mm maximum opening, an English control panel, foot pedal operation, and micrometer adjustment for precise and repeatable crimping. The new screw mold system enables faster die changes for efficient daily production.

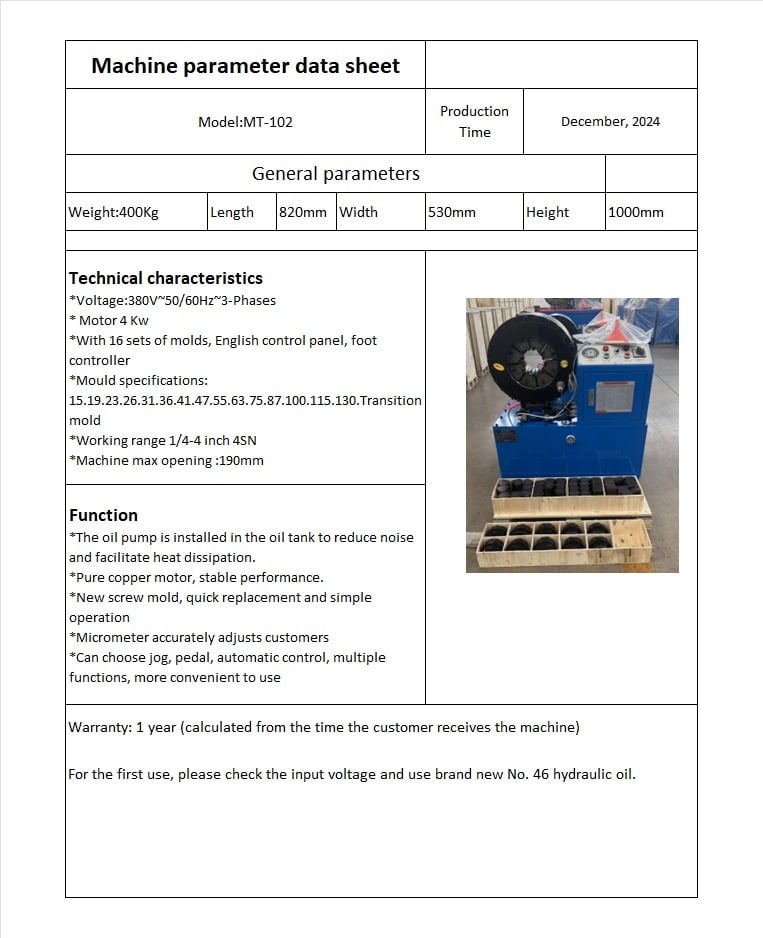

Technical Specs
General
- Model: MT-102
- Working Range: 1/4″ – 4″ (4SN)
- Machine Max Opening: 190 mm
- Control Panel: English
- Operation Modes: Jog / Pedal / Automatic
- Production Batch: December 2024
Electrical
- Voltage: 380V / 50–60Hz / 3 Phase
- Motor Power: 4 kW
Dies (Mold Specifications)
- Die Sets: 16 Sets + Transition Mold
- Die Sizes (mm): 15 – 19 – 23 – 26 – 31 – 36 – 41 – 47 – 55 – 63 – 75 – 87 – 100 – 115 – 130 + Transition Mold
Dimensions
- Length: 820 mm
- Width: 530 mm
- Height: 1000 mm
Weight
- Net Weight: 400 kg
Key Features
- Designed for crimping hoses up to 4 inch
- Large head opening: 190 mm
- Full copper motor for stable performance
- Oil pump inside the tank for lower noise
- Micrometer adjustment for precise settings
- Foot pedal + Jog + Automatic control modes
- Fast die change (new screw mold system)
