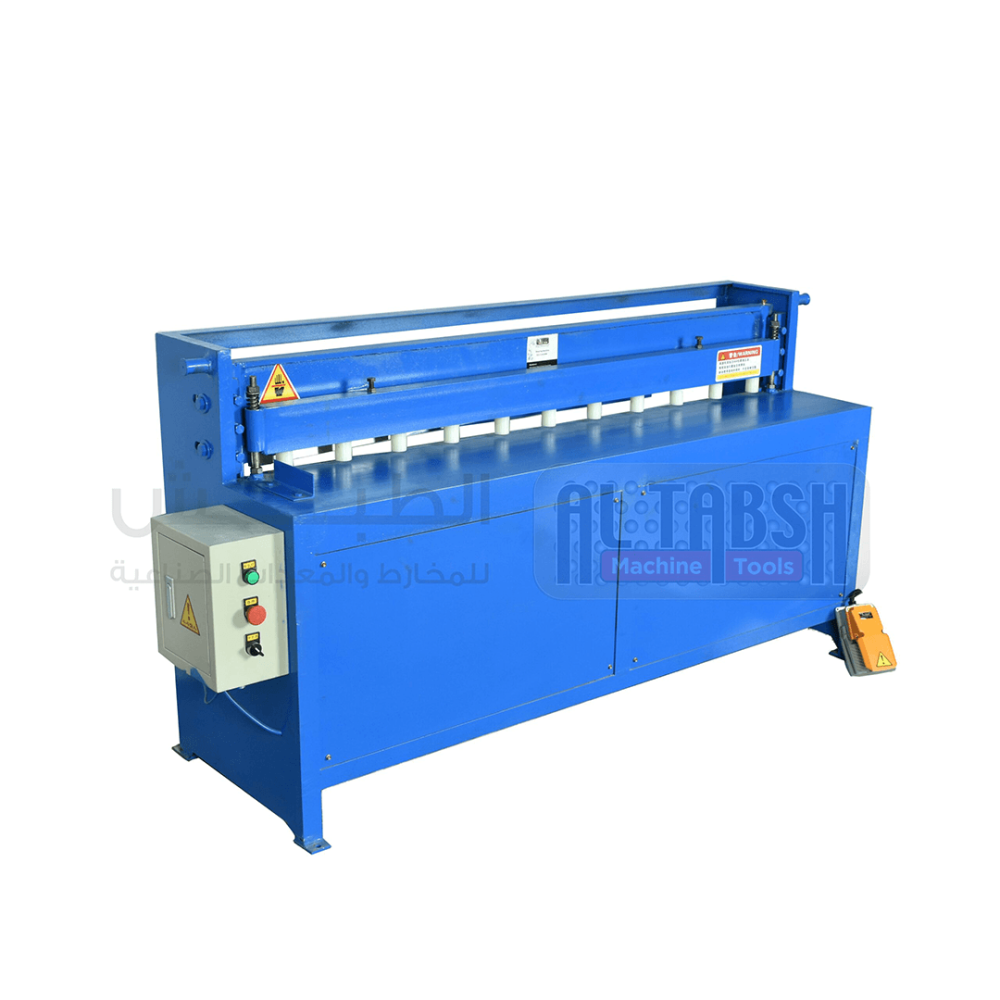

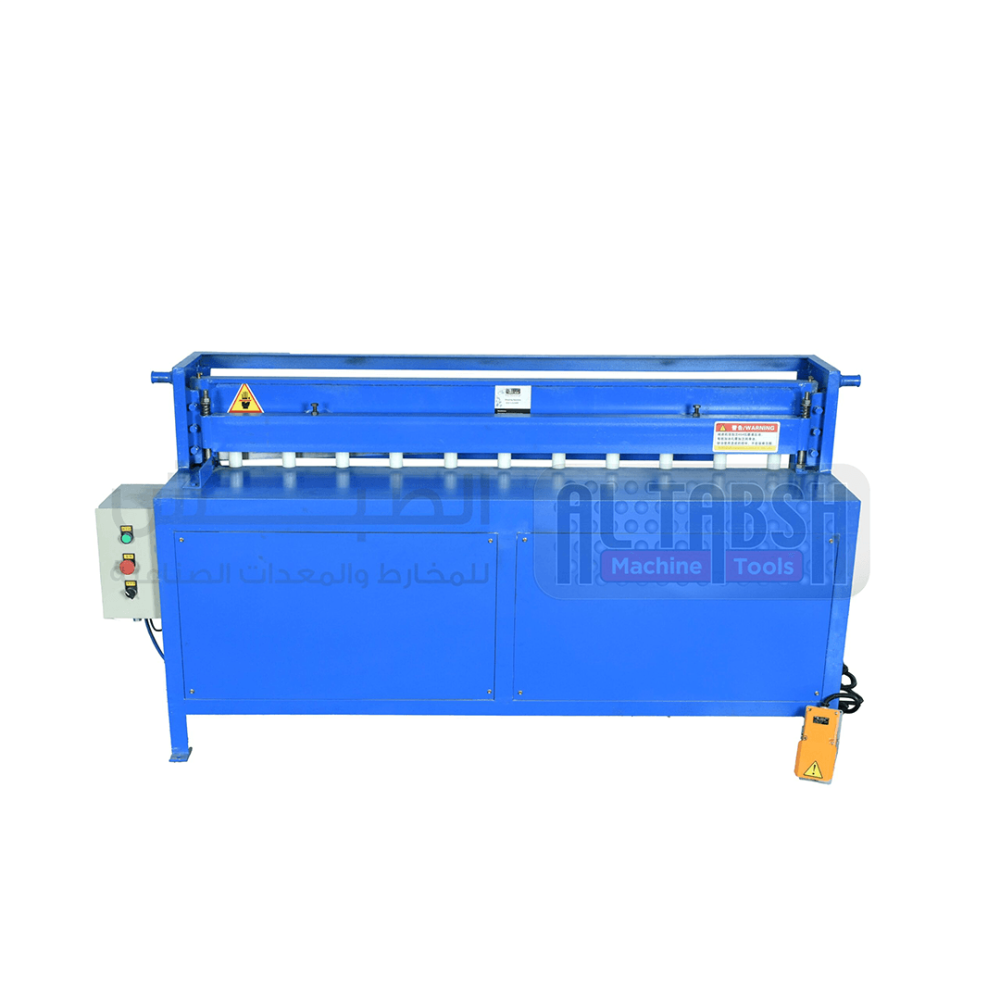

The 1.5×1600 mm electrical sheet metal shear is designed for light and medium‑duty fabrication shops, used to cut mild steel sheet up to 1.5 mm thickness and 1.6 m width with good stability and cutting performance.
It operates on 380 V three‑phase industrial power, providing sufficient torque and lower current draw compared with single‑phase units, making it suitable for workshop and factory environments.
The rated capacity applies to black/mild steel sheet only and should not be treated as a capacity for stainless steel, since stainless has significantly higher shear strength than mild steel.
The machine is manufactured in China and supplied with a one‑year warranty on the electric motor only, excluding knives, mechanical parts, and any failures caused by misuse or overloading beyond its rated capacity.
Basic specifications
Machine type: Electrical Metal Sheet Shearing Machine
Maximum cutting thickness: 1.5 mm (mild steel sheet)
Cutting length: 1600 mm
Operating voltage: 380 V three phase
Country of origin: China
Warranty: One year on the motor only
