80‑ton cardboard baler press for recycling centers and large plants that require high‑density heavy bales of cardboard and paper, producing bales sized 1200×800×1000 mm with an approximate weight of 350–500 kg.

The machine uses a double‑cylinder hydraulic system (outer diameter 180 mm, inner diameter 160 mm) with a long 1200 mm stroke to achieve high compaction pressure and tightly packed bales.

It operates on 380 V three‑phase power, driven by an 18.5 kW motor and filled with hydraulic oil grade NO.68/46, with overall dimensions around 3150×2000×1850 mm and machine weight about 900 kg to ensure excellent stability in continuous industrial use.

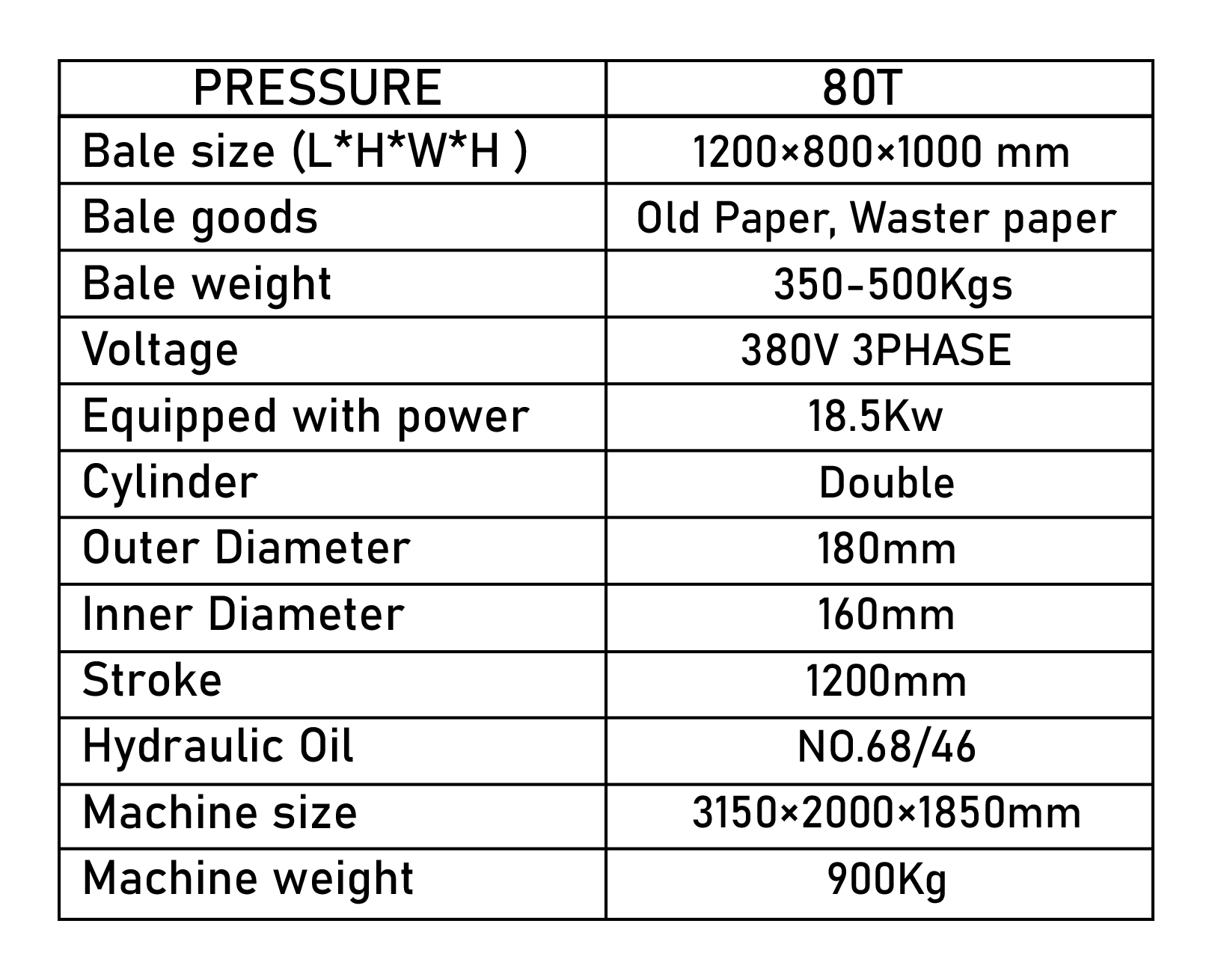

Technical specifications

Pressing force: 80 tons

Material type: Cardboard, waste paper, paper scraps

Bale size: 1200×800×1000 mm

Bale weight: approx. 350–500 kg

Voltage: 380 V three phase

Motor power: 18.5 kW

Number of cylinders: 2 (double‑cylinder design)

Cylinder outer diameter: 180 mm

Cylinder inner diameter: 160 mm

Cylinder stroke: 1200 mm

Hydraulic oil type: NO.68/46

Machine dimensions: approx. 3150×2000×1850 mm

Machine weight: 900 kg
