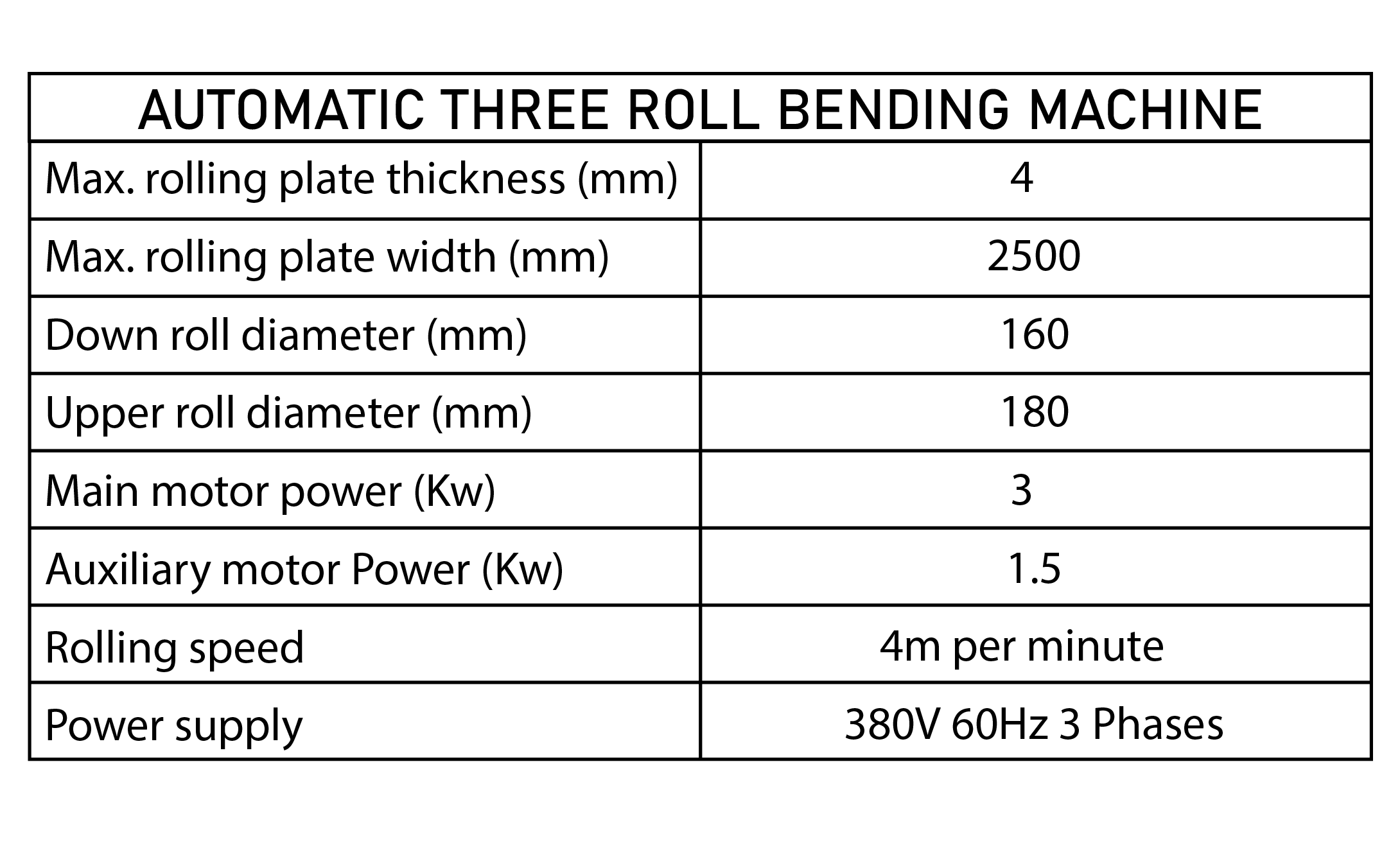

Technical specifications
Maximum plate thickness: 4 mm.
Maximum plate width: 2500 mm.
Diameter of lower rolls: 160 mm.
Diameter of top roll: 180 mm.
Main motor power: 3 kW.
Auxiliary motor power: 1.5 kW.
Rolling speed: approximately 4 m/min.
Power supply: 380 V, 60 Hz, three phase.
Features and applications

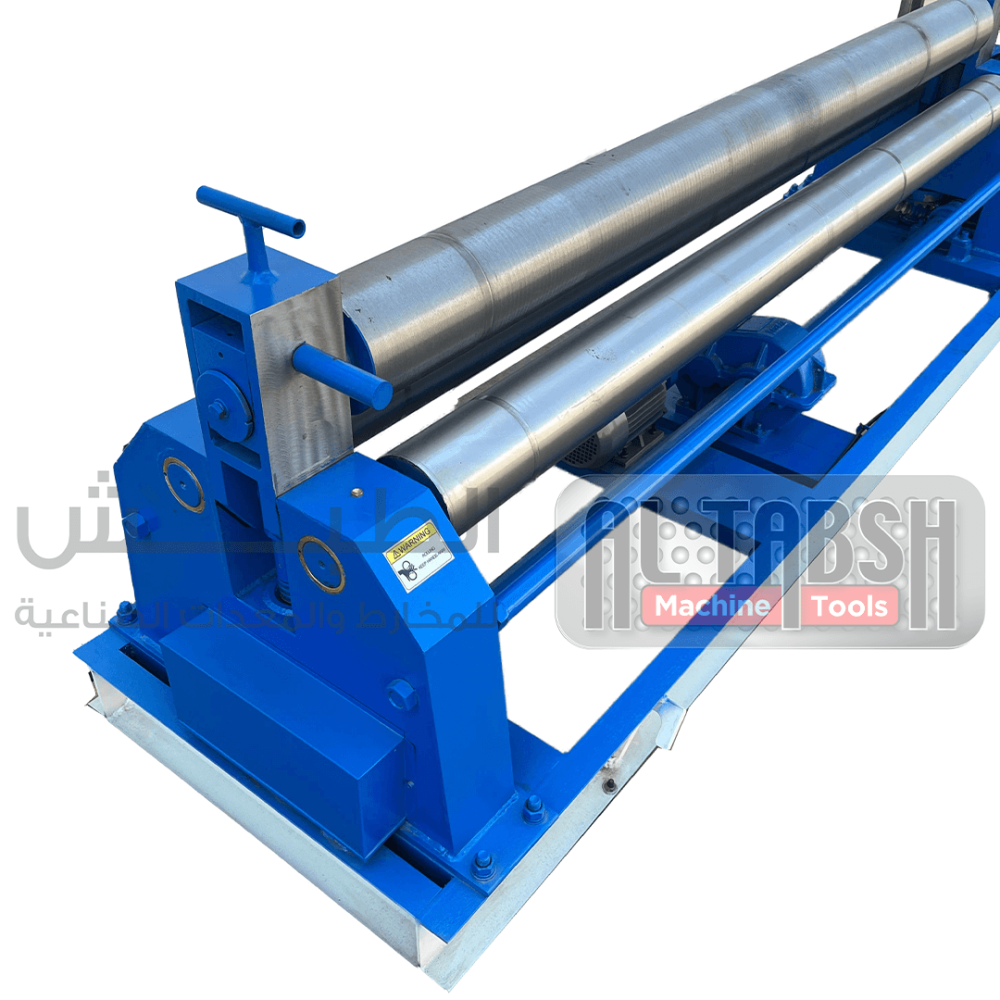

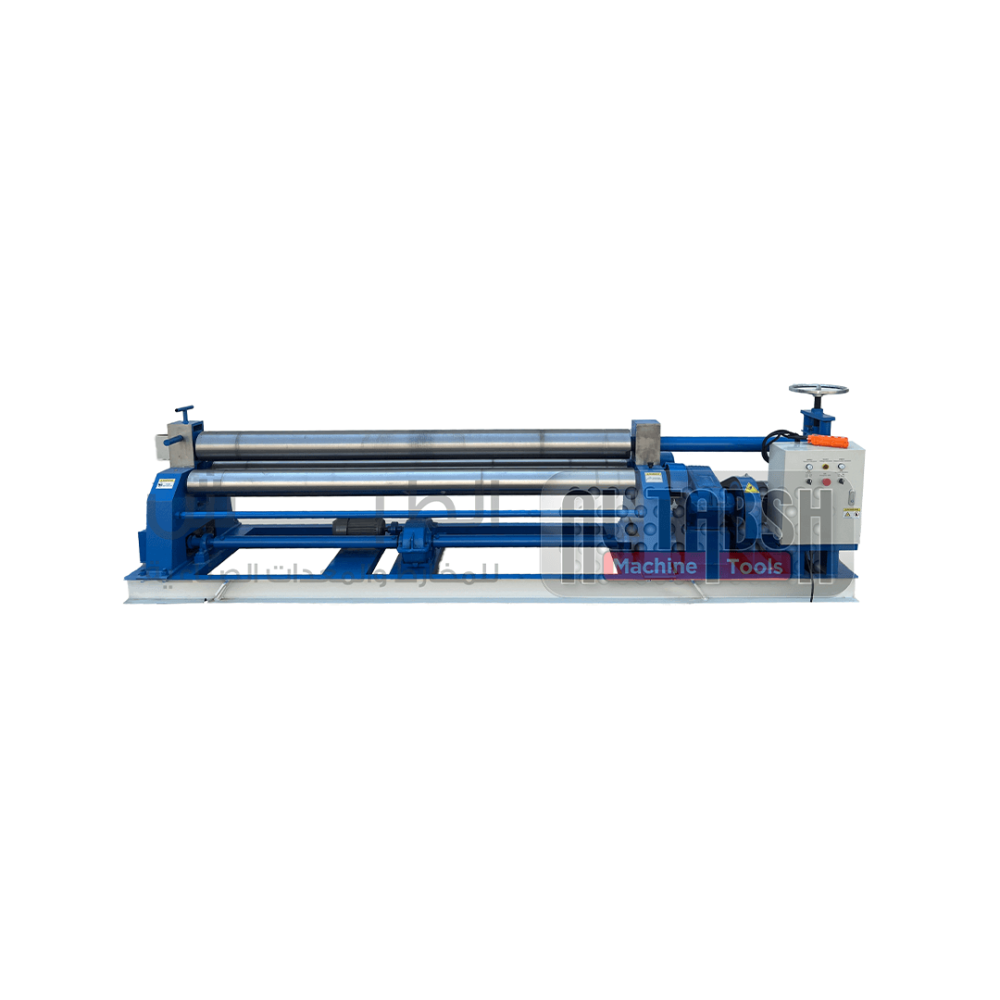

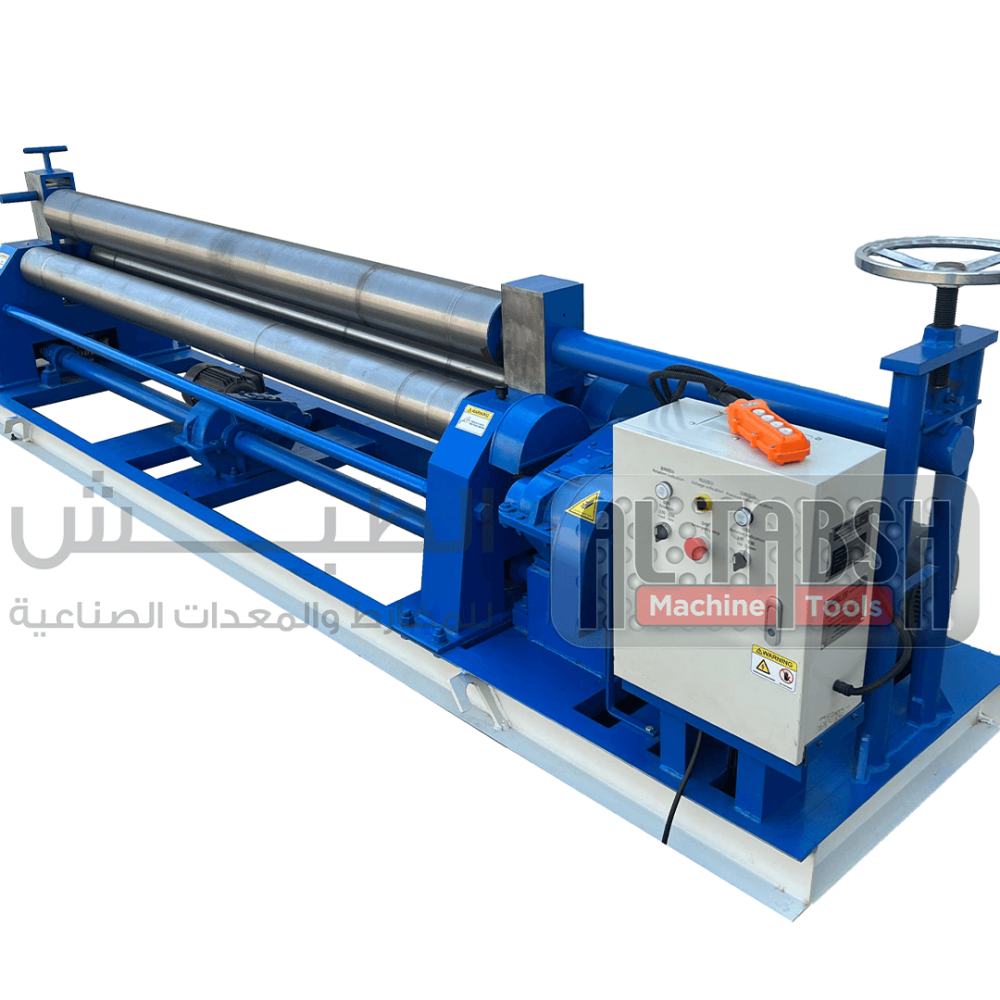

Automatic three‑roll plate bending machine for efficiently rolling cylinders and cones from medium‑thickness sheet with consistent productivity.
Suitable for tank fabrication, ductwork, and metal structure workshops, with electric control for easy adjustment and repeatable settings.
