Industrial all‑geared drilling machine SP‑D50, professional for drilling up to 40 mm with MT4 spindle, 180 mm spindle travel, four‑step feed from 0.07 to 0.40 mm/rev, and 12 speeds with variable range up to 2050 rpm.
Equipped with a heavy 370×500 mm tilting table (±45°), 460×450 mm base, 160 mm column diameter, and 525 mm table travel.
Three‑phase dual‑speed main motor (2200/2800 W, 220/380 V, 960/1450 rpm) plus 90 W coolant pump delivering 6 L/min, packing size 700×1150×2150 mm, net weight 740 kg and gross weight 800 kg for heavy‑duty daily production.

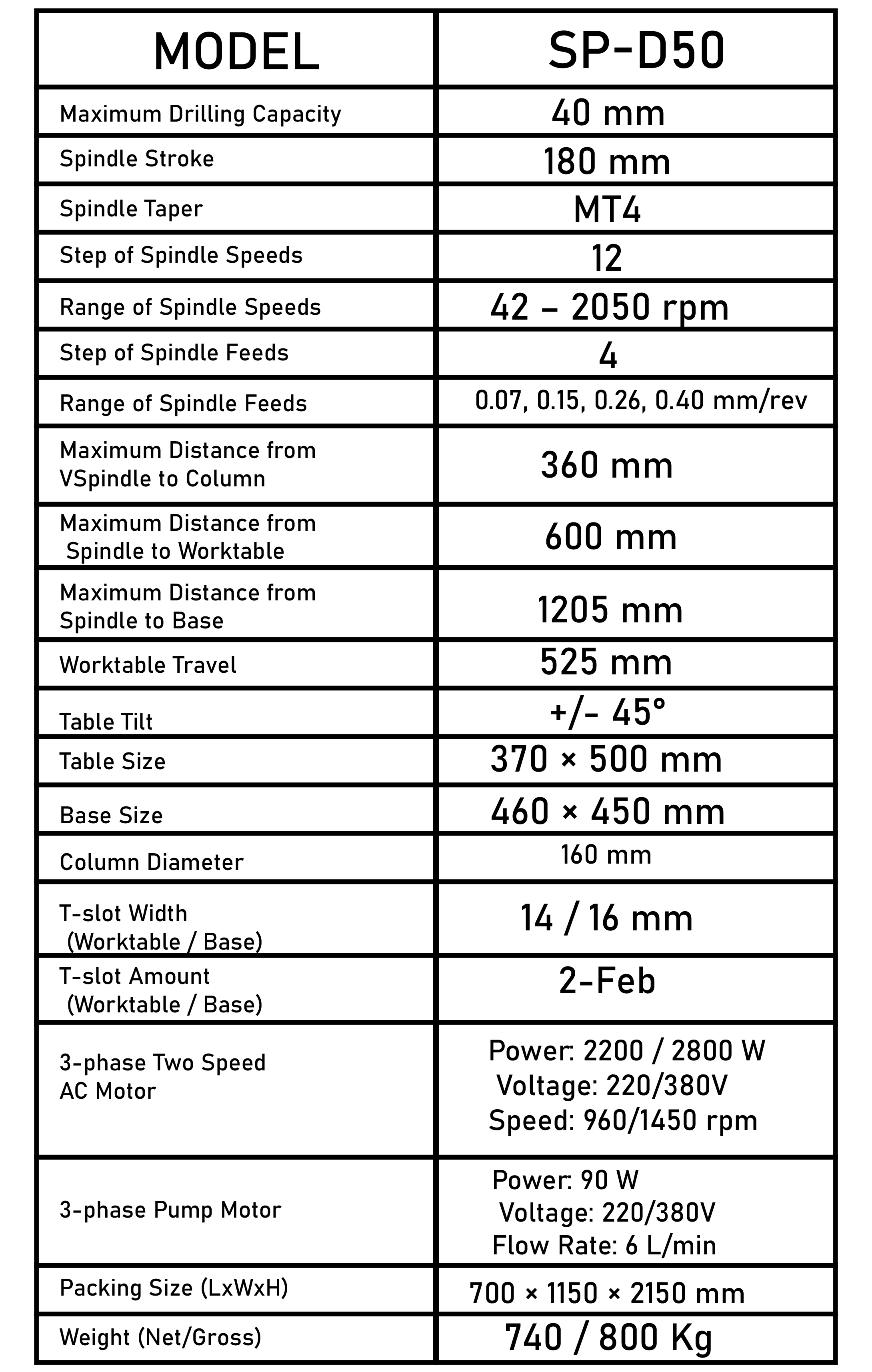

Technical specifications
Model: SP‑D50
Drilling capacity: 40 mm
Spindle travel: 180 mm
Spindle taper: MT4
Number of speeds: 12
Speed range: 42–2050 rpm
Feed rates: 0.07 / 0.15 / 0.26 / 0.40 mm/rev
Table travel: 525 mm
Table tilt: ±45°
Table size: 370×500 mm
Base size: 460×450 mm
Column diameter: 160 mm
T‑slots (number / size): 2 / 14 & 16 mm
Main motor: 2200 / 2800 W
Coolant motor: 90 W
Net / gross weight: 740 / 800 kg
Packing size: 700×1150×2150 mm
